SK38SMA | Diotec
Rectifier diodes, 80 V, 3 A, DO214AC

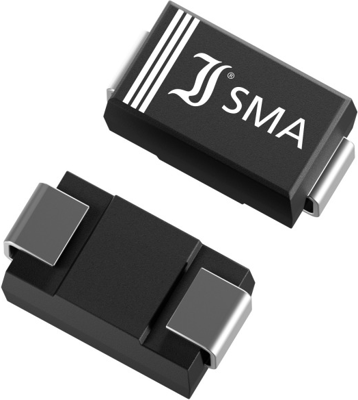

Images may differ
Unit Price (€ / pc.)
0.2796 € *
Available: 3,375 pcs.
Leadtime: 6 Weeks **
Total Price:
5.59 € *
Quantity
Price per unit*
20 pcs.
0.2796 €
100 pcs.
0.2059 €
500 pcs.
0.1642 €
2000 pcs.
0.1357 €
4000 pcs.
0.1214 €
*incl. VAT plus shipping costs
**Subject to prior sale
Description
SMD Schottky rectifiers, type Diotec SK3.
Package material: UL 94 V-0 classified. Junction temperature: –50 to +150 °C. Package: DO214AC(SMA).
Technical attributes (type, periodic peak reverse voltage, limiting value of mean on-state current): SK38SMA, 80 V, 3.0 A
Technical specifications
| Number of diodes | 1 | |
| Version | schottky rectifier diode | |
| Design | SMD | |
| Forward Current | 3 A | |
| Enclosure | DO-214AC | |
| Capacity | 200 pF | |
| max. operating temperature | 150 °C | |
| min. operating temperature | -50 °C | |
| Assembly | PCB mounting | |
| Voltage V RRM (peak reverse voltage) | 80 V | |
| Junction temperature (max.) | 150 °C | |
| Junction temperature (min.) | -50 °C | |
| Surge blocking voltage V RMS | 80 V |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85411000 |
| MSL | MSL 1 |
| Original Packaging | Reel with 7,500 pieces |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
Variations
Search results: 1 item in 3 variations
*incl. VAT plus shipping costs
Order No.:
24S2181
Manufacturer:
Diotec
Manufacturer SKU:
SK38SMA
Total Price: 5.59 € *
20 pcs.
0.2796 €
100 pcs.
0.2059 €
500 pcs.
0.1642 €
2000 pcs.
0.1357 €
4000 pcs.
0.1214 €
Available: 3,375 pcs.
Leadtime: 6 Weeks **
80 V
200 pF
SMD
schottky rectifier diode
3 A
1
PCB mounting
-50 °C
150 °C
DO-214AC
Order No.:
24S2178
Manufacturer:
Diotec
Manufacturer SKU:
SK34SMA-3G
Total Price: 1.80 € *
10 pcs.
0.1797 €
50 pcs.
0.1285 €
250 pcs.
0.1071 €
1000 pcs.
0.0928 €
2500 pcs.
0.0797 €
Available: 14,150 pcs.
Leadtime: 10 Weeks **
40 V
250 pF
SMD
schottky rectifier diode
3 A
1
PCB mounting
-50 °C
150 °C
DO-214AC
Order No.:
24S2183
Manufacturer:
Diotec
Manufacturer SKU:
SK315SMA
7500 pcs.
0.1297 €
Available: 0 pcs.
Leadtime: 11 Weeks **
150 V
125 pF
SMD
schottky rectifier diode
3 A
1
PCB mounting
-50 °C
150 °C
DO-214AC
*incl. VAT plus shipping costs
**Subject to prior sale
