09 3403 86 03 | binder

Sensor actuator cable, M8-flange plug, straight to open end, 3 pole, 0.2 m, 4 A, 09 3403 86 03

Order No.: 66P1114
EAN: 4099889699555
MPN:
09 3403 86 03
Series: 718

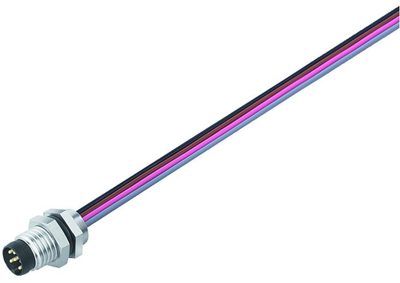

09 3403 86 03 binder Sensor-Actuator Cables Image 1
09 3403 86 03 binder Sensor-Actuator Cables Image 2
Image may differ
Unit Price (€ / pc.)
9.5914 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
9.59 € *
Price list
Quantity
Price per unit*
1 pcs.
9.5914 €
10 pcs.
8.6394 €
50 pcs.
7.9373 €
100 pcs.
6.9853 €
*incl. VAT plus shipping costs
**Subject to prior sale

Sensor-actuator connector, 09-3403-86-03, BINDER

M8 Male panel mount connector, Contacts: 3, unshielded, single wires, IP67, PUR black, front mounting.

Features

  • Contact material: CuZn
  • Pollution degree: 3
  • Overvoltage category: I
Technical specifications
Cable length 0.2 m
LED display No
max. Voltage 60 V
Degree of protection (IP) IP67
Rated current 4 A
Connection (2) open end
Pin number 3 pole
Connection (1) M8-flange plug, straight
Logistics
Country of origin DE
Customs tariff number 85369010
Compliance
Date of RoHS guidelines 3/31/15
Substance description Lead
SVHC free No
RoHS conform Yes
