09 0174 320 08 | binder
Sensor actuator cable, M16-flange socket, straight to open end, 8 pole, 0.2 m, 5 A, 09 0174 320 08
Unit Price (€ / pc.)
24.9424 € *
Available: 0 pcs.
Leadtime: 4 Weeks **
Total Price:
24.94 € *
Price list
Quantity
Price per unit*
1 pcs.
24.9424 €
10 pcs.
23.4549 €
25 pcs.
22.0269 €
50 pcs.
20.7060 €
*incl. VAT plus shipping costs
**Subject to prior sale

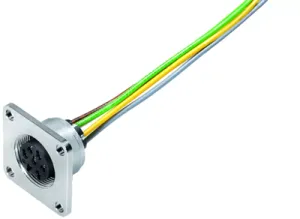

Sensor actuator cable, 09 0174 320 08, binder
M16 IP67 Female panel mount connector, Contacts: 8 DIN, unshielded, single wires, IP68, UL.

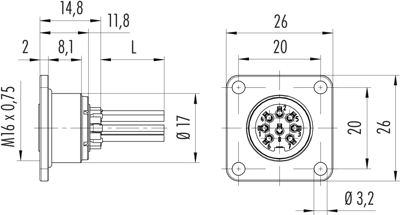

Technical specifications
| Connection (1) | M16-flange socket, straight | |
| Connection (2) | open end | |
| Cable length | 0.2 m | |
| LED display | No | |
| max. Voltage | 100 V | |
| Rated current | 5 A | |
| Pin number | 8 pole | |
| Degree of protection (IP) | IP67/IP68 |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
