647892-8 | AMP

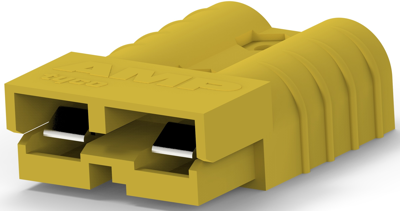

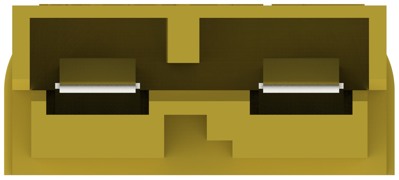

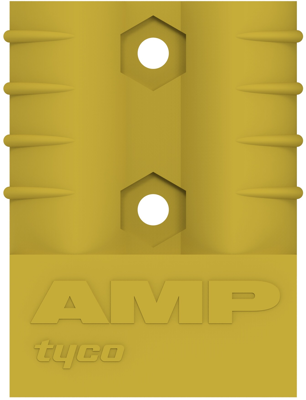

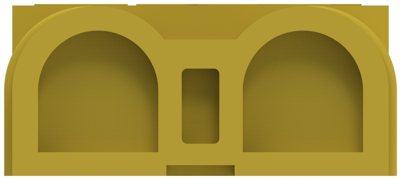

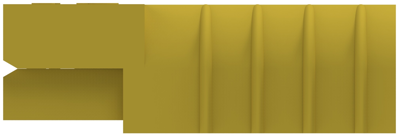

Socket header, 2 pole, pitch 19.06 mm, straight, yellow, 647892-8
Unit Price (€ / pc.)
7.3304 € *
Available: 0 pcs.
Leadtime: 21 Weeks **
PCB Connection System, 647892-8, AMP
Wire-to-Wire, Wire & Cable, 2 Position
Technical Data
- Connector Mounting Type: Cable Mount (Free-Hanging)
- Contact Type: Female/Male
- Housing Material: Polycarbonate
- Housing Color: yellow
- Number of positions: 2
- Operating Temperature Range: -20 – 105 °C [-4 – 221 °F]
- Rated current: 50 A
- Centerline (Pitch): 19.06 mm
- Sealable: No
Technical specifications
| Connection | crimp connection | |
| Connection plating | silver-plated | |
| Number of rows | 1 | |
| Version | socket header | |
| Additional parts | equipped | |
| Colour | yellow | |
| Contact type | socket/pin | |
| contact surface | silver-plated | |
| Rated voltage | 600 V | |
| Rated current | 50 A | |
| Orientation | straight | |
| Pin number | 2 pole | |
| Grid | 19.06 mm | |
| Type of locking | Yes |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85369001 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
