BEMUFLON PTFE-SCHLAUCH 5 X 3 MM NATUR | Insulating Tubes
Insulating tube, inside Ø 3 mm, transparent, polytetrafluoroethylene, -200 to 260 °C, BEMUFLON PTFE-SCHLAUCH 5 X 3 MM NATUR
Order No.: 90F3002
EAN: 4099891193638
MPN:
BEMUFLON PTFE-SCHLAUCH 5 X 3 MM NATUR
Unit Price (€ / mtr.)
7.7945 € *
Available: 81 mtr.
Leadtime: 10 Weeks **
Total Price:
7.79 € *
Price list
Quantity
Price per unit*
1 mtr.
7.7945 €
10 mtr.
7.1638 €
50 mtr.
6.7354 €
100 mtr.
6.3189 €
500 mtr.
5.9024 €
*incl. VAT plus shipping costs
**Subject to prior sale

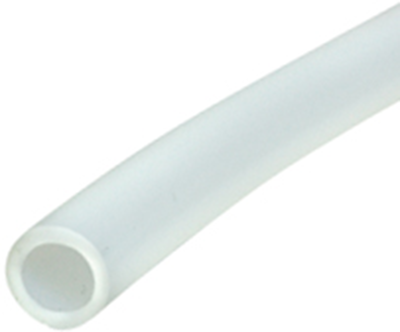

PTFE tubing, type BEMUFLON.
Excellent slide and anti-adhesion properties, good (universal) resistance against chemicals, no water absorption, non-combustible, good electrical and dielectric properties; Wall thickness: 1.0 mm. Color: plain. Operating temperatures: –200 to +260 °C. Melting point: +327 °C. Shore hardness D: 55. Density: 2.15 to 2.19 g/cm³. Tensile strength (at +23 °C): 30 to 40 N/mm².
Technical attributes (outer diameter OD), inner diameter ID): BEMUFLON 5 x 1, OD 5.0 mm, ID 3.0 mm
Technical specifications
| Version | insulating tube | |
| Colour | transparent | |
| Inner diameter | 3 mm | |
| Material | polytetrafluoroethylene | |
| max. operating temperature | 260 °C | |
| min. operating temperature | -200 °C | |
| Wall thickness | 1 mm |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 39173900 |
| Original Packaging | Reel with 100 meters |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
