11898942 | WEG

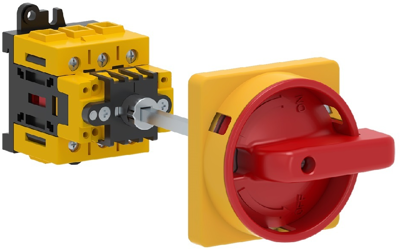

Load-break switch, Rotary actuator, 3 pole, 63 A, (L x W x H) 91.1 x 52.5 x 91.5 mm, Base mounting, 11898942
No longer in assortment
Unit Price (€ / pc.)
120.3566 € *
Available: 1 pcs.
Leadtime: On Request **
Total Price:
120.36 € *
Price list
Quantity
Price per unit*
1 pcs.
120.3566 €
5 pcs.
113.1333 €
15 pcs.
108.8136 €
50 pcs.
103.9941 €
*incl. VAT plus shipping costs
**Subject to prior sale
Switch-Disconnector, 11898942, Weg
Switch-Disconnector, 3-pole, 63A, Red. This switch-disconnector enables the manual drive of motors, machines and other equipment. It was developed according to IEC60947-3 and UL508, enable carrying and interrupting electric currents under normal or overload conditions.
Technical specifications
| Actuator | Rotary actuator | |
| Width | 52.5 mm | |
| Permanent current | 63 A | |
| Height | 91.5 mm | |
| Length | 91.1 mm | |
| Assembly | Base mounting | |
| Pin number | 3 pole | |
| Degree of protection (IP) | IP65 |
Download
Logistics
| Country of origin | BR |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | not_specified |
