895-1052 | WAGO

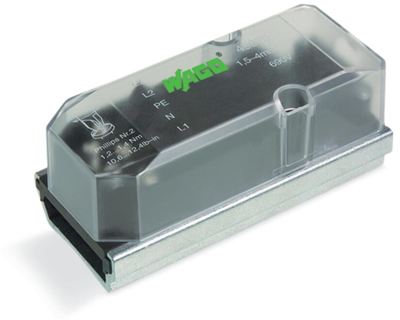

Tap-off module, 895-1052, WAGO

The WINSTA IDC tap-off module 5-pole allows installation of solid and fine-stranded conductor. On PCB, in control cabinet or for connecting light - a pluggable installation connector from WAGO allows you to make connection according to a huge variety of requirements in next to no time. For greater security in electrical installation, the pluggable installation connector is equipped with mechanical protection against mismating. The pluggable installation connector is protected in accordance with protection type IP20 (When mated: IP2xC (This compact connector is not designed for use in open, easily accessible area!)). This means that a user's finger will never come into contact with energised contact element. This pluggable installation connector is designed for a voltage load of up to 32 A. As a result, it can also be used for high power load.

The WINSTA Pluggable Connection System is perfectly tailored to the very strict requirements of building installation. It makes electrical installation pluggable, and therefore more efficient, more reliable, and error-free. Using this pre-assembled system decreases assembly times and errors during installation at the construction site. Now you can also reduce installation expenses without compromising safety and quality: with protection type IP20 reduces the need for servicing and prevents unnecessary downtime.

Features

• Effective protection against mismating
• Saves time, since no wiring is required at the construction site
• Custom-engineered solutions
• Convenient installation and commissioning
