772-266/060-000 | WAGO

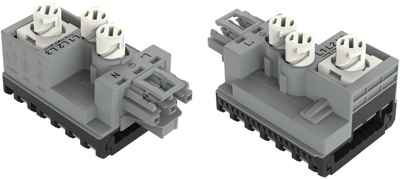

Tap-off module, 772-266/060-000, WAGO

The WINSTA IDC tap-off module B coding. A WAGO pluggable installation connector is used when a specification repeats or is planned on a specific pattern, for example for installing grid light or flush-mount light. The coding option reduces installation error, allowing fast, maintenance-free wiring of all components. The pluggable installation connector is protected against ingress by solid object in accordance with protection type IP20 (When mated: IP2xC (This compact connector is not designed for use in open, easily accessible area!)). A pluggable installation connector with B coding from the WINSTA IDC line is available in gray, light green, or pink, allowing you to distinguish different circuit, for example for pump, light, or sun blind. Usage-specific pole marking is possible in addition. This pluggable installation connector can be used for a voltage load of up to 25 A. As a result, it can also be used for high power load.

WINSTA is the pluggable connection system that is optimally tailored to the strict requirements of electrical installation. It ensures fast, secure and, above all, error-free installation of components and cables. Now you can also lower installation expenses without compromising safety and quality: with protection type IP20 reduces the need for servicing and prevents unnecessary downtime.

Features

• Protection against mismating eliminates errors
• Products perfectly tailored to your requirements guarantee safe use
• With B coding for use in process automation, such as lighting technology, among other examples

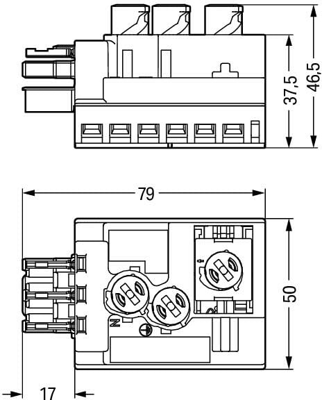

• Exact dimensions
• Rapid, structured electrical installation
