756-1401/060-020 | WAGO
TPU data cable, CANopen/DeviceNet, 5-wire, AWG 24-22, purple, 756-1401/060-020
Unit Price (€ / pc.)
58.8931 € *
Available: 0 pcs.
Leadtime: On Request **

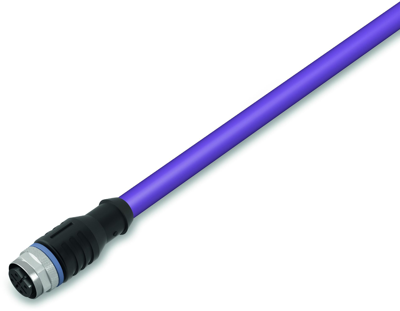

CANopen/DeviceNet cable, 756-1401/060-020, WAGO

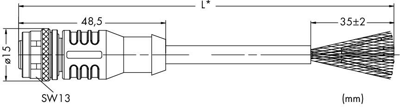

CANopen/DeviceNet cable, M12A socket, Straight, 5-pole, Length: 2 m.
Features
- PUR VT, halogen-free
- Suitable for drag chains
- High resistance to microbes, hydrolysis, oil, chemical, ozone and UV resistance
- High chemical resistance
Technical specifications
| Core insulation material | PE | |
| Number of cores | 5 | |
| Version | data cable | |
| Outer diameter | 5 mm | |
| AWG cross-section | AWG 24-22 | |
| Bussystem | CANopen/DeviceNet | |
| Colour | purple | |
| Halogen free | Yes | |
| Cable material | copper, bright | |
| Material | TPU | |
| Shielding | shielded | |
| Drag chain suitable | Yes | |
| Temperature range (active) | -40 °C to 80 °C | |
| Temperature range (unmoved) | -40 °C to 80 °C |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85444290 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
