1776301-6 | TE Connectivity

Connection terminal, 1 pole, 0.326-3.31 mm², gray, screw connection, 11 A

Order No.: 71P3476
EAN: 4099891743284
MPN:
1776301-6
TE Connectivity

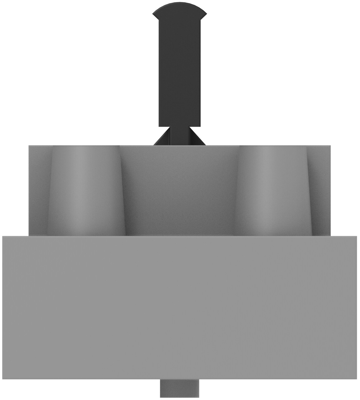

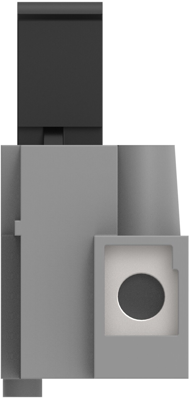

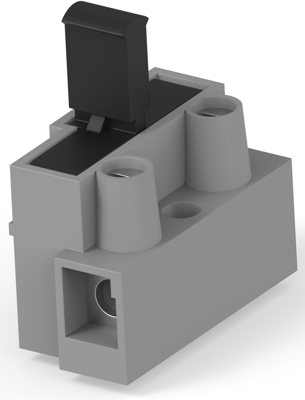

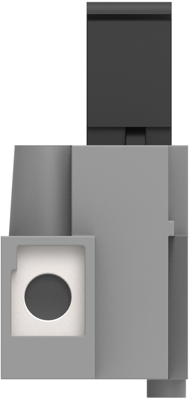

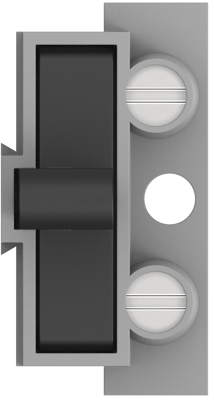

default L
front L
side L
back L
top L
Image may differ
Print
Key Specification:
Version connection terminal
Pin number 1 pole
Cable cross-section 0.326-3.31 mm²
Colour gray

Ordering Information:

not to be sold to private customers
Download Datasheet Technical specifications
Unit Price (€ / pc.)
2.38 € *
Available: 0 pcs.
Available in 5 Days: 102 pcs.
Leadtime: 1 Week **
Add to Cart
Total Price:
2.38 € *
*incl. VAT plus shipping costs
**Subject to prior sale
36 pcs.
2.38 €
Description
Technical specifications
Download
Logistics
Compliance

PCB Terminal, 1776301-6, TE Connectivity

The 1776301-6 is a modular design that is cut into smaller sections without altering electrical properties. This product with wire protectors virtually eliminate twisting and breakage of stranded wire during connection.

Features

  • Mounting holes between every circuit
  • High circuit density

Applications

  • Motor Controls
  • Power Supplies
  • Telecom
  • Valve Actuators
  • Spa Controllers
  • Lighting
Technical specifications
Connection screw connection
Version connection terminal
AWG cross-section AWG 22 to 12
Colour gray
Cable cross-section 0.326-3.31 mm²
Rated current 11 A
Pin number 1 pole
Show similar products 0
Logistics
Country of origin DE
Customs tariff number 85366990
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
Substance description Lead
