1-2273028-3 | TE Connectivity

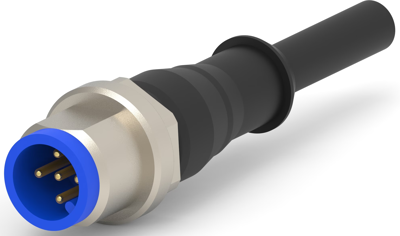

Sensor actuator cable, M12-cable plug, straight to open end, 4 pole, 5 m, PVC, black, 4 A, 1-2273028-3
Order No.: 71P1445
EAN: 4099891671518
MPN:
1-2273028-3
Unit Price (€ / pc.)
16.0650 € *
Available: 0 pcs.
Available in 5 Days: 30 pcs.
Leadtime: 25 Weeks **
Total Price:
240.98 € *
Price list
Quantity
Price per unit*
15 pcs.
16.0650 €
30 pcs.
15.7675 €
*incl. VAT plus shipping costs
**Subject to prior sale
Circular connector, 1-2273028-3, TE Connectivity
M12 Socket x 1.0 angled pigtail A, Sensor/Actuator, Number of positions: 4, Right angle, Single ended, Plastic.
Technical specifications
| Connection (1) | M12-cable plug, straight | |
| Connection (2) | open end | |
| Pin number | 4 pole | |
| Cable length | 5 m | |
| Colour | black | |
| Material | PVC | |
| Degree of protection (IP) | IP65/IP67 | |
| LED display | No | |
| max. Voltage | 250 V | |
| Rated current | 4 A |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85444290 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
