150346-2 | TE Connectivity

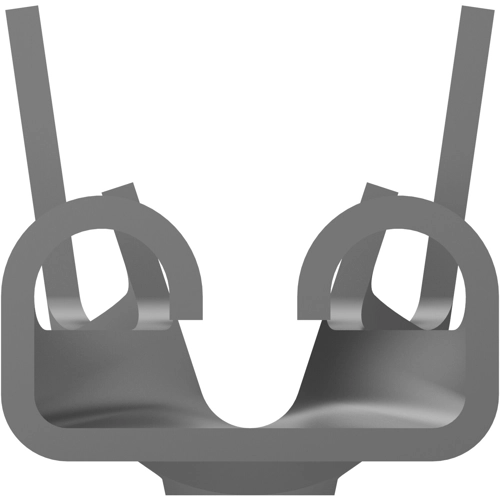

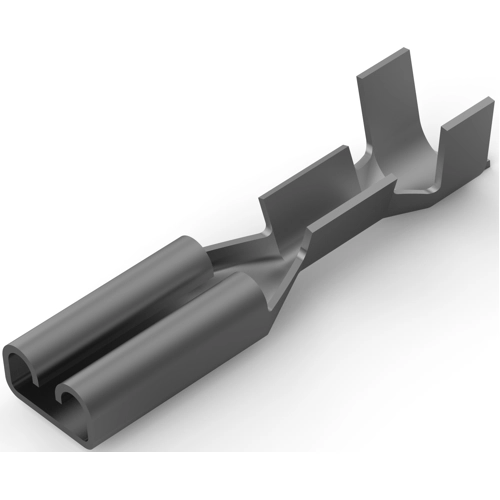

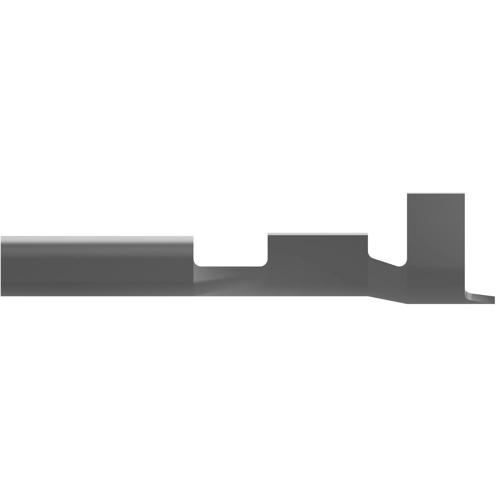

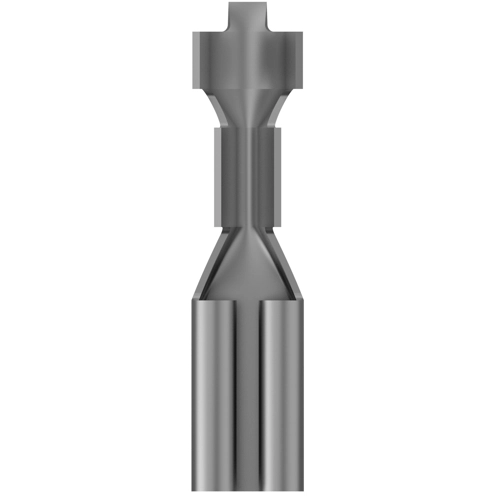

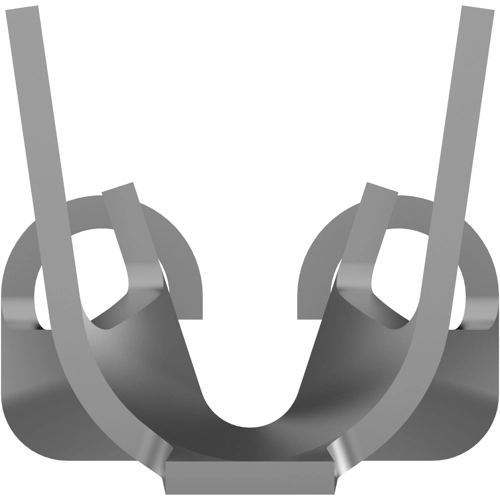

Uninsulated flat plug sleeve, 2.8 x 0.81 mm, 0.2 to 0.51 mm², AWG 24 to 20, Brass, tin-plated, 150346-2
Quick disconnect, 150346-2, TE Connectivity
Terminates To: Wire & Cable, Sealable: No, Insulated: No, Connection Capacity: Single, Fully Insulated: No, Quick Disconnect Plating Material: Tin, Terminal Type: Receptacle, Terminal & Splice Type: Receptacle, Quick Disconnect Terminal Orientation: Straight, Contact Base Material: Brass, Crimp Type: F-Crimp, Wire Insulation Support: With, Receptacle Terminal Stock Thickness: .3 mm, Wire Size: 24 – 20 AWG, Wire Size: .2 – .51 mm², Quick Disconnect Mating Tab Width: 2.8 mm, Quick Disconnect Mating Tab Thickness: .81 mm, Insulation Requirement: Uninsulated, Operating Temperature Range: -40 – 110 °C, UL Rating: Listed, Packaging Quantity: 200, Quick Disconnect Packaging Method: Loose Piece/Carton, Line: FASTON .110
| Connection | crimp connection | |
| Version | flat plug sleeve | |
| AWG cross-section | AWG 24 to 20 | |
| Suitable for | 2.8 x 0.81 mm | |
| Isolated | No | |
| Length | 15.29 mm | |
| Cable cross-section | 0.2 to 0.51 mm² | |
| Material | Brass, tin-plated |
| Country of origin | CZ |
| Customs tariff number | 85366990 |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
