1776252-8 | TE Connectivity
PCB terminal, 8 pole, pitch 5 mm, AWG 22-14, 10 A, screw connection, blue, 1776252-8
Order No.: 71P3449
EAN: 4099891628024
MPN:
1776252-8
Unit Price (€ / pc.)
3.9865 € *
Available in 5 Days: 530 pcs. - if ordered today
Total Price:
3.99 € *
Price list
Quantity
Price per unit*
1 pcs.
3.9865 €
10 pcs.
3.6771 €
50 pcs.
3.3082 €
100 pcs.
2.9750 €
*incl. VAT plus shipping costs
Subject to prior sale

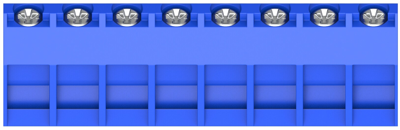

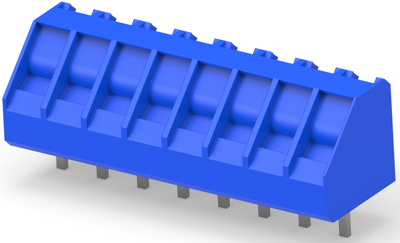

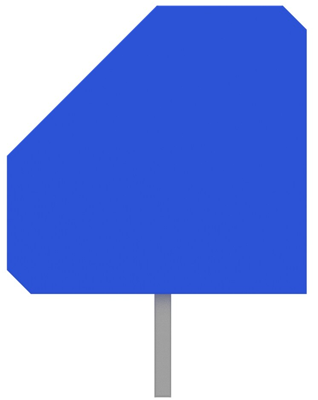

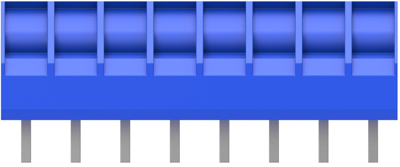

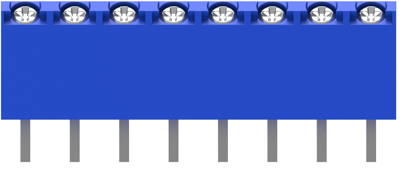

PCB Terminal, 1776252-8, TE Connectivity
The 1776252-8 has full wire guard protection so that the screw does not press directly on the wire. This product is designed with a dovetail and special detent to provide a more reliable attachment after combining smaller sizes.
Technical specifications
| AWG cross-section | AWG 22-14 | |
| Pin number | 8 pole | |
| Rated voltage | 300 V | |
| Cable cross-section | 0.3-2 mm² | |
| Connection | screw connection | |
| Width | 12.5 mm | |
| Rated current | 10 A | |
| Grid | 5 mm | |
| Height | 12 mm | |
| Colour | blue |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
