2842115-8 | TE Connectivity

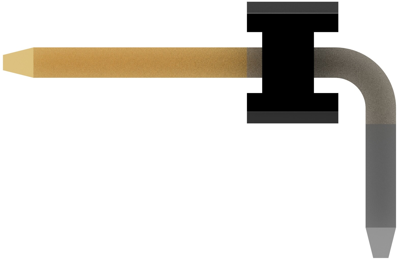

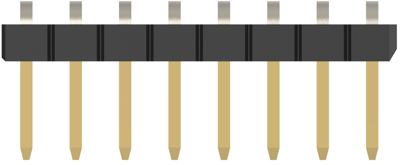

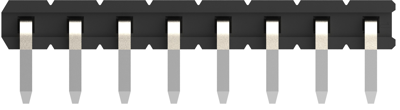

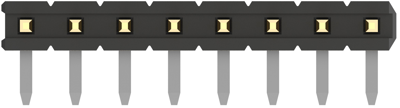

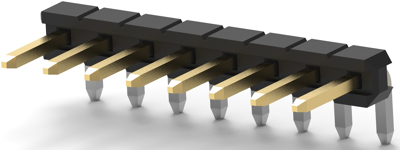

Pin header, 8 pole, pitch 2 mm, angled, black, 2842115-8
Unit Price (€ / pc.)
1.2733 € *
Available: 0 pcs.
Available in 5 Days: 3,454 pcs.
Leadtime: 1 Week **
Total Price:
1.27 € *
Price list
Quantity
Price per unit*
72 pcs.
1.2733 €
360 pcs.
1.2019 €
*incl. VAT plus shipping costs
**Subject to prior sale
Pin header, 2842115-8, TE Connectivity
The 2842115-8 is a PCB Mount header, ideal for mobile and portable personal computers and disk drive applications.
Technical specifications
| Connection | solder connection | |
| Connection plating | tin-plated | |
| Number of rows | 1 | |
| Version | pin header | |
| Colour | black | |
| Contact type | pin | |
| contact surface | gold-plated | |
| Rated voltage | 125 V | |
| Rated current | 2 A | |
| Orientation | angled | |
| Pin number | 8 pole | |
| Grid | 2 mm | |
| Type of locking | Yes |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
