1969592-8 | TE Connectivity

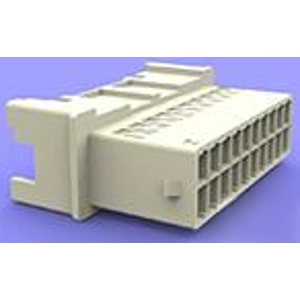

Socket housing, 8 pole, pitch 2.5 mm, straight, white, 1969592-8
Unit Price (€ / pc.)
0.2071 € *
Available: 0 pcs.
Available in 5 Days: 1,738 pcs.
Leadtime: 1 Week **
Wire-to-Board Connector Assemblies and Housings, 1969592-8, TE Connectivity
Connector Product Type: Housing, Connector & Housing Type: Receptacle, Connector System: Wire-to-Wire, Sealable: No, Connector & Contact Terminates To: Wire & Cable, Number of Positions: 8, Number of Rows: 2, Operating Voltage: 250 VAC, Contact Type: Pin, Contact Current Rating (Max): 3 A, Termination Method to Wire & Cable: Crimp, Mating Retention Type: Latch, Mating Retention: With, Connector Mounting Type: Cable Mount (Free-Hanging), Housing Material: Nylon - GF, Centerline (Pitch): 2.5 mm, Housing Color: White, Wire Size: .13 – .33 mm², Row-to-Row Spacing: 1.28 mm, Operating Temperature Range: -55 – 105 °C, Circuit Application: Power & Signal, UL Flammability Rating: UL 94V-0, Packaging Method: Bag, Comment: Free Hanging
Technical specifications
| Connection | crimp connection | |
| Number of rows | 2 | |
| Version | socket housing | |
| Additional parts | unequipped | |
| Breakable | No | |
| Colour | white | |
| Contact type | pin | |
| Rated voltage | 250 V | |
| Rated current | 3 A | |
| Orientation | straight | |
| Pin number | 8 pole | |
| Grid | 2.5 mm | |
| Type of locking | Yes |
Download
Logistics
| Country of origin | BE |
| Customs tariff number | 85389011 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
