2213699-1 | TE Connectivity
LED Connector, 2213699-1
Order No.: 71P5636
EAN: 4099891625313
MPN:
2213699-1
Unit Price (€ / pc.)
21.5152 € *
Available: 0 pcs.
Available in 5 Days: 20 pcs.
Leadtime: 1 Week **
Total Price:
21.52 € *
Price list
Quantity
Price per unit*
4 pcs.
21.5152 €
19 pcs.
20.2538 €
*incl. VAT plus shipping costs
**Subject to prior sale
LED Connector, 2213699-1, TE Connectivity

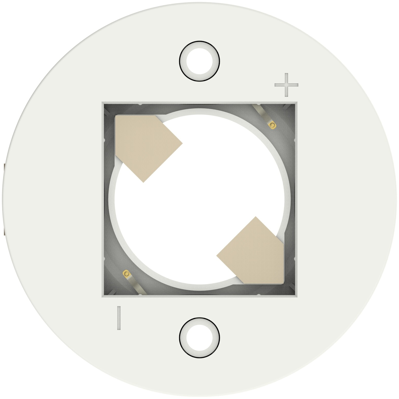

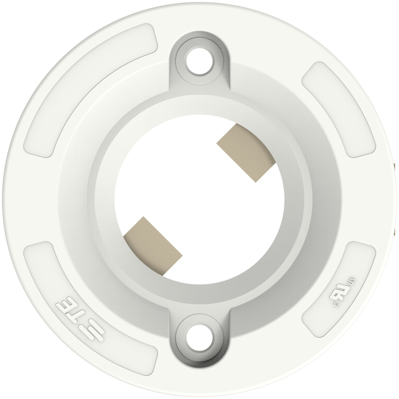

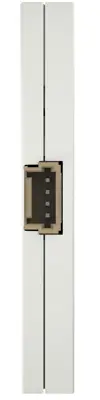

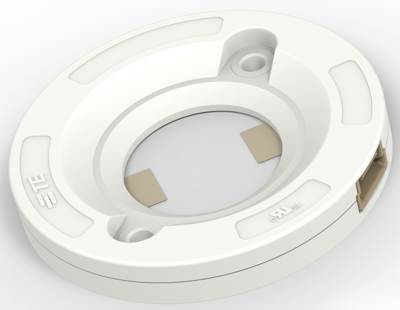

The 2213699-1 is an LED holder for Chip-on-Board (COB) LEDs where a DC/DC driver has been integrated into the holder itself. This allows luminaire designers to remove driver boxes from spot and track lighting, giving a more aesthetically pleasing solution and removing cost from the system.
Technical specifications
| Connection | mini CT connector | |
| contact surface | gold-plated | |
| Rated voltage (DC) | 48 V | |
| Rated current | 0.35 A | |
| Orientation | straight | |
| Pin number | 2 pole | |
| Grid | 35 mm |
Download
Logistics
| Country of origin | NZ |
| Customs tariff number | 85414100 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
