1-936059-1 | TE Connectivity

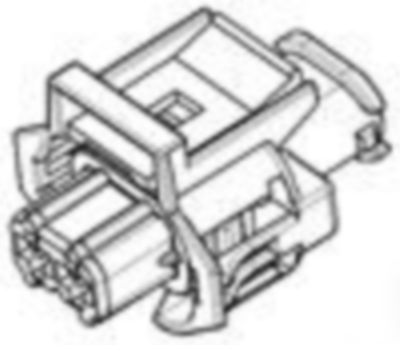

Plug, unequipped, 2 pole, straight, 1 row, black, 1-936059-1
Order No.: 36P2505
EAN: 4099889897593
MPN:
1-936059-1
Unit Price (€ / pc.)
1.1305 € *
Available: 0 pcs.
Available in 5 Days: 100 pcs.
Leadtime: 1 Week **
Total Price:
1.13 € *
Price list
Quantity
Price per unit*
75 pcs.
1.1305 €
450 pcs.
0.9401 €
*incl. VAT plus shipping costs
**Subject to prior sale
Automotive housing, 1-936059-1, TE Connectivity
Connector system: wire-to-board, wire-to-device, wire-to-wire, Sealable: yes, Hybrid connector: no, Strain relief: no, Number of positions: 2, Number of rows: 1, Body material: PA GF, Primary product color: black, Mating tab width: 2.8 mm, Terminal position assurance: no, Polarized, Centerline (pitch): 5 mm, Height: 30.5 mm, Length: 25 mm, Width: 20.1 mm, Circuit application: signal, Packaging method: bag, Packaging quantity: 200, Serviceable: no, Connector position assurance capable: no
Technical specifications
| Connection | crimp connection | |
| Number of rows | 1 | |
| Version | straight | |
| Additional parts | unequipped | |
| Colour | black | |
| Contact type | plug | |
| Rated voltage | 125 V | |
| Rated current | 10 A | |
| Pin number | 2 pole | |
| Grid | 5 mm | |
| Type of locking | No |
Download
Logistics
| Country of origin | PL |
| Customs tariff number | 85389091 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
