70033K | Talema

Toroidal flat transformer, 7 VA, 15 V, 15 V, 2x115 V, Talema 70033K

Order No.: 38C766
EAN: 4099891350963
MPN:
70033K
Series: 700
70033K Talema Toroidal Transformers Image 1

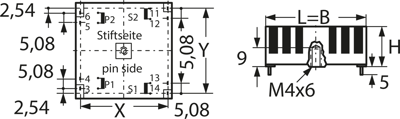

70033K Talema Toroidal Transformers Image 2
Image may differ
Unit Price (€ / pc.)
18.4807 € *
Available: 19 pcs.
Leadtime: On Request **
Total Price:
18.48 € *
Price list
Quantity
Price per unit*
1 pcs.
18.4807 €
12 pcs.
17.5168 €
24 pcs.
16.4934 €
96 pcs.
15.6723 €
*incl. VAT plus shipping costs
**Subject to prior sale

Toroidal low-profile transformers, with UL certification, type Talema 700.

For ultra compact space and weight saving installation, excellent temperature response and only minute leakage field

Rated power 7.0 VA, type 7003.

Technical specifications
Output power 7 W
Width 49.7 mm
Height 23.1 mm
Length 49.7 mm
Secondary voltage (2) 15 V
efficiency 74 %
Secondary voltage (1) 15 V
Secondary amperage 1 0.233 A
Primary voltage 2 x 115 V
secondary amperage 2 0.233 A
Logistics
Country of origin IN
Customs tariff number 85043180
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
