6024796 | SICK
Reflecting light barrier, PNP, 10-30 VDC, cable connection, IP67, 6024796
Order No.: 24G210
EAN: 4099889430295
MPN:
6024796
WL140-2P132
Unit Price (€ / pc.)
203.3234 € *
Available: 0 pcs.
Leadtime: On Request **

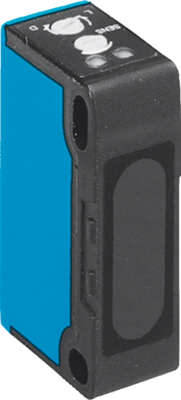

Retroreflective photoelectric sensors, type Sick WL140-2.
With polarization filter for detection of reflecting surfaces; Supply voltage: 10 to 30 VDC. Range/operating range: max. 6.5 m, depending on the reflector. Light emitter: LED. Light type: red light. Light spot diameter: approx. 250 mm at a distance of 2.5 m. Radiation angle: approx. 5.8°. Switching output: PNP. Operating current: 100 mA. Response time: max. 0.5 ms. Switching rate: 1000 Hz. Connection type: PVC cable, 2.0 m or M 8 connector, 4-pole. Housing material: PBT, PMMA. VDE protection class: II. Degree of protection: IP 67. Ambient temperature (operation): –25 to +55 °C. Supplied with mounting bracket.
Type: WL140-2P132, retro reflective photoelectric sensor with PVC cable
Technical specifications
| Connection | cable connection | |
| Activation time | 0.5 ms | |
| Version | reflecting light barrier | |
| Output | PNP | |
| Degree of protection (IP) | IP67 | |
| Voltage | 10-30 VDC | |
| Power supply | 30 mA |
Download
Logistics
| Country of origin | JP |
| Customs tariff number | 85365019 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
