MFB25B12 | SEPA

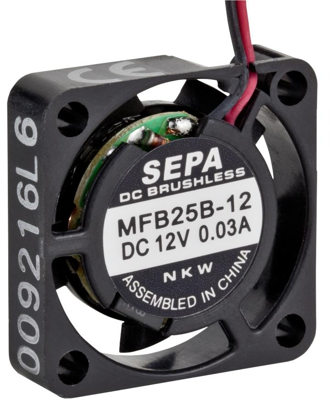

DC axial fan, 12 V, 25 x 25 x 6 mm, 1.38 m³/h, 17 dB, ball bearing, SEPA MFB25B12
Unit Price (€ / pc.)
16.4577 € *
Available: 1 pcs.
Leadtime: On Request **
Total Price:
16.46 € *
Price list
Quantity
Price per unit*
1 pcs.
16.4577 €
10 pcs.
14.4823 €
50 pcs.
13.4946 €
150 pcs.
12.8996 €
500 pcs.
12.2451 €
*incl. VAT plus shipping costs
**Subject to prior sale
DC Axial fan, MFB25B12, SEPA
The MFB25B12 is a high-tech miniature fan that is suitable for industrial or automotive use and has exceptional airflow performance despite its low height of only 6.5 mm.
Features
- It is permanently protected electrically against reverse polarity blocking and thermal overloading
- Suitable for battery-powered devices
- Extremely robust
- Material housing: plastic

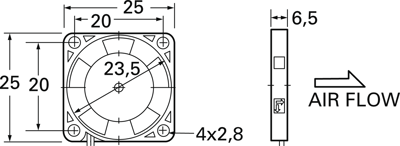

Technical specifications
| Depth | 6 mm | |
| speed | 10000 1/min | |
| Sound pressure level | 17 db | |
| Volume flow | 1.38 m³/h | |
| Width | 25 mm | |
| Height | 25 mm | |
| Version | DC axial fan | |
| Type of bearing | ball bearing | |
| Rated voltage | 12 V |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 84145925 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
