34568-230 | SCHROFF

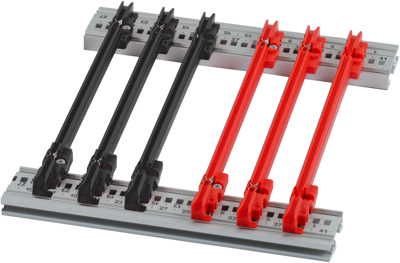

Guide Rail Standard Type, PC, 70 mm, 2 mm GrooveWidth, Red
Order No.: 85H6137
EAN: 4036088219788
MPN:
34568-230
Unit Price (€ / pc.)
0.6783 € *
Available: 0 pcs.
Leadtime: 1 Week **
New generation guide rails as accessories for PCBs or plug-in units. Forms a reliable interface between the mechanics of the subrack and the subassemblies. With the optimised design and the new, high-quality plastic, not only has the stability been significantly increased, but the fire protection properties have also improved. This means that the material is flame-retardant, has low smoke toxicity and density and meets the requirements of EN 45545-2 (fire protection in rail vehicles) for classes R22, R23 and R24 with the highest hazard level HL3. Furthermore, the guide rails are also considered halogen-free according to IEC 61249-2-21.
Technical specifications
| Version | guide rail | |
| Width | 2 mm | |
| Colour | red | |
| Length | 70 mm | |
| Material | polycarbonate |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 39269097 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
