D44774-000 | Raychem
Heatshrink tubing, 3:1, (57.15/19.05 mm), polyolefine, white
Unit Price (€ / pc.)
5.0099 € *
Available: 0 pcs.
Available in 5 Days: 1,609 pcs.
Leadtime: 1 Week **
Total Price:
5.01 € *
Price list
Quantity
Price per unit*
20 pcs.
5.0099 €
85 pcs.
4.9266 €
*incl. VAT plus shipping costs
**Subject to prior sale

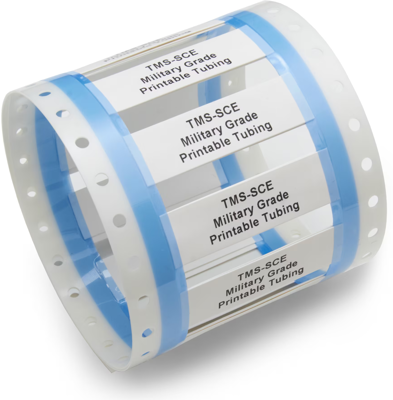

Heat-shrink identification sleeve, D44774-000, TE Connectivity
The D44774-000 is a thin wall, light weight, fast recovery 3:1 shrink ratio sleeve, allowing the customer to cover a wide range of cable diameters. Suitable for a wide variety of applications, including aerospace, military, industrial and energy. This product is made from durable, flame retarded, radiation cross linked heat shrinkable polyolefin. Supplied in ‘ladder format’, sleeves are presented for ease of printing and kitting.
Features
- Self-extinguishing, non-flame propagating
- Can be laser marked for superior performance
- Military grade performance
- Pre-termination Cable Identification
Technical specifications
| Colour | white | |
| Inner diameter after shrinkage | 19.05 mm | |
| Inner diameter before shrinkage | 57.15 mm | |
| Length | 50 mm | |
| Material | polyolefine | |
| max. operating temperature | 135 °C | |
| min. operating temperature | -55 °C | |
| Shrinking rate | 3:1 | |
| Wall thickness | 0.58 mm | |
| Inch Size | 1/4 |
Download
Logistics
| Country of origin | US |
| Customs tariff number | 39269097 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
