120411-000 | Raychem

Name: Butt connector with heat shrink insulation, 0.24 mm², AWG 24, transparent blue, 30 mm
Brand: Raychem
SKU: 34P3372
Price: 8.46 EUR
Availability: OutOfStock

Butt connector with heat shrink insulation, 0.24 mm², AWG 24, transparent blue, 30 mm

Order No.: 34P3372

MPN:

120411-000

B-040-24-N

EAN: 4099889605051

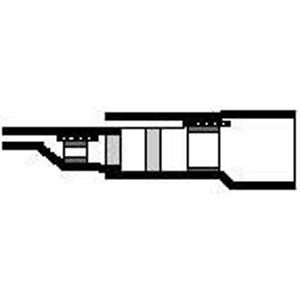

Images may differ

Key Specification:

Version butt connector

Cable cross-section 0.24 mm²

AWG cross-section AWG 24

Isolated Yes

Colour transparent blue

Ordering Information:

not to be sold to private customers

Technical specifications Download Datasheet

Unit Price (€ / pc.)

8.4609 € *

Available: 0 pcs.

Available in 5 Days: 289 pcs.

Leadtime: 5 Days **

Add to Cart

Total Price:

8.46 € *

Quantity

Price per unit*

15 pcs.

8.4609 €

60 pcs.

8.0563 €

*incl. VAT plus shipping costs

**Subject to prior sale

Add to comparison list Print

Description

Coax Cable Termination, 120411 - 000, Raychem

Temperature Indicator: No, Coax Cable Termination Product Type: Coax Terminator, Coax Cable Termination Applies To: Coaxial Cable, Splice Type: SolderSleeve, Pre - Installed Lead Type: 55A0111, Lead Stranding: Stranded, Cable Shield Material: Silver,Tin, Shield Outside Diameter (Max): 2.8 mm, Termination Method: Solder, Pre - Installed Lead Wire Size: 0.24 mm², Jacket Outside Diameter: 4.4 mm, Coax Cable Termination Conductor Outside Diameter: 0.3 - 1.6 mm, Dielectric Outside Diameter: 2.5 mm, Overall Length: 30 mm, Resistance Properties: Splash Protection, Coax Cable Termination Operating Temperature (Max): 150 °C, MIL/NAS Specification (MIL - S - 83519, NAS - 1747): No, Government Qualified: No

Technical specifications

	Version	butt connector
	AWG cross-section	AWG 24
	Colour	transparent blue
	Isolated	Yes
	Length	30 mm
	Cable cross-section	0.24 mm²
	Material	polyvinylidene fluoride
	shrinkable tubing	Yes
