1.11.061.001/0001 | RAFI

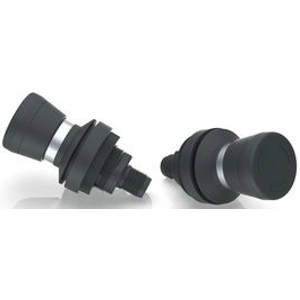

RAMO 30 T, mushroom pushbutton, M12, collar round,latching, 2 NC
Unit Price (€ / pc.)
72.3758 € *
Available: 0 pcs.
Leadtime: 7 Weeks **
Total Price:
72.38 € *
Price list
Quantity
Price per unit*
1 pcs.
72.3758 €
5 pcs.
69.0438 €
10 pcs.
65.9974 €
*incl. VAT plus shipping costs
**Subject to prior sale
Mushroom pushbutton, 1110610010001, RAFI
It features the RAFI MICON 5 tactile switch, RAMO 22 T offers tactile feedback with a noticeable click. Due to the IP 66/IP69K degree of protection, it is recommended in particular for plant engineering and construction. RAMO 22 T requires a mounting hole diameter of 22.3 mm. As a further product variant, the RAMO 22 T mushroom pushbutton offers a latching pushbutton option for every application. It is characterised by form and function as for an emergency stop, but is only declared as a pushbutton. Various contact functions are possible.
Features
- Single-part, closed housing
- Unique series with easiest Plug&Play connection
- Can be illuminated in many colors
- Pushbutton with black mushroom head
Applications
- Measurement-control-regulation
- Electrical engineering
- Mechanical and system engineering
- Vehicle construction
- Chemical industry
- Industrial robots
Technical specifications
| Design | round | |
| Printed | Yes | |
| illuminated | No | |
| Installation diameter | 30.3 mm | |
| Actuator colour | black | |
| contact surface | gold-plated | |
| Pin number | 2 pole | |
| Latching switching function | latching | |
| Breaking capacity | 0.1 A/35 V | |
| Protection class | IP65/IP67 | |
| Wall thickness | 1-9 mm |
Download
Logistics
| Country of origin | HU |
| Customs tariff number | 85365011 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
