3028005 | Phoenix Contact

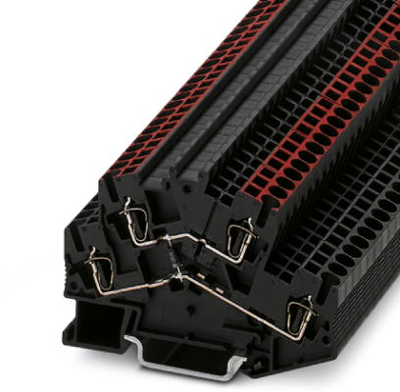

Component terminal block, spring balancer connection, 0.08-4.0 mm², 22 A, 6 kV, black, 3028005

Order No.: 60P4989
EAN: 4017918949952
MPN:
3028005
STTBS 2,5-DIO/O-U BK
Phoenix Contact
default L
Image may differ

Not suitable for new designs, LTB: 06.30.2025

Unit Price (€ / pc.)
6.9496 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
6.95 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
6.9496 €

Component terminal block, 3028005, Phoenix Contact

Component terminal block, with integrated diode, rated voltage: 500 V, nominal current: 22 A, 1st and 2nd level, connection method: Spring-cage connection, Rated cross section: 2.5 mm², cross section: 0.08 mm²  - 4 mm², mounting: NS 35/7,5, NS 35/15, color: black.

Technical specifications
Connection spring balancer connection
Version Component terminal block
AWG cross-section AWG 28 to 12
Rated Voltage 500 V
Rated surge voltage 6 kV
Width 5.2 mm
Colour black
Height 55 mm
Length 78 mm
Cable cross-section 0.08-4.0 mm²
Rated current 22 A
Degree of soiling 3
Logistics
Country of origin PL
Customs tariff number 85369010
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
Substance description Lead
