1551875 | Phoenix Contact

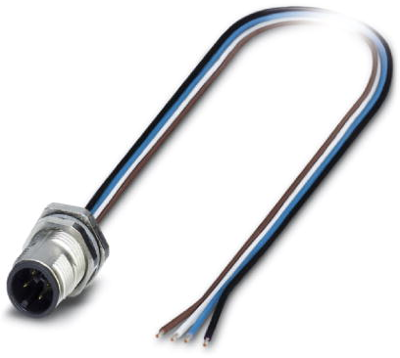

Sensor actuator cable, M12-flange plug, straight to open end, 4 pole, 0.5 m, 4 A, 1551875
Order No.: 61P8772
EAN: 4046356161930
MPN:
1551875
SACC-DSI-MS-4CON-M12/0,5 SCO
Unit Price (€ / pc.)
16.4815 € *
Available: 3 pcs.
Leadtime: On Request **
Total Price:
16.48 € *
Price list
Quantity
Price per unit*
1 pcs.
16.4815 €
10 pcs.
14.4942 €
50 pcs.
13.5065 €
150 pcs.
12.9234 €
500 pcs.
12.2570 €
*incl. VAT plus shipping costs
**Subject to prior sale
Device connector, 1551875, Phoenix Contact
Device connector, Universal, 4-position, Flush-type male connector, Straight, M12-SPEEDCON, Coding: A , On free cable end, Rear mounting, M12 x 1, Individual wires, Cable length: 0.5 m, 0.34 mm², TPE litz wire.
Features
- Pre-assembled with litz wires for immediate use
- Sealed on the litz wire side for optimum leak-tightness
- All standard pin assignments and codings for signal, data, and power transmission with a uniform design-in design
- For high transmission safety: shield connection to the housing with optional EMC nut
- SPEEDCON fast locking system reduces cabling times

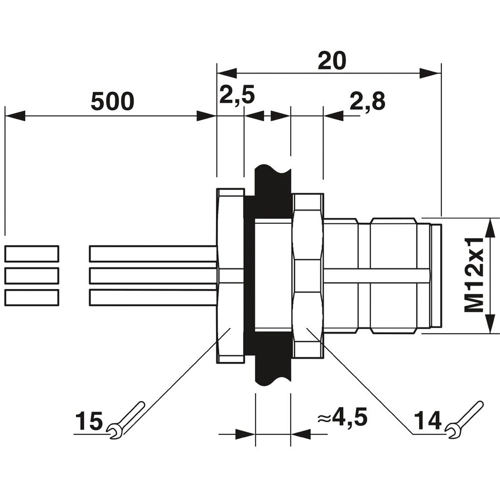

Technical specifications
| Connection (1) | M12-flange plug, straight | |
| Connection (2) | open end | |
| Cable length | 0.5 m | |
| LED display | No | |
| max. Voltage | 250 V | |
| Rated current | 4 A | |
| Pin number | 4 pole | |
| Degree of protection (IP) | IP65/IP67 |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
