1541733 | Phoenix Contact

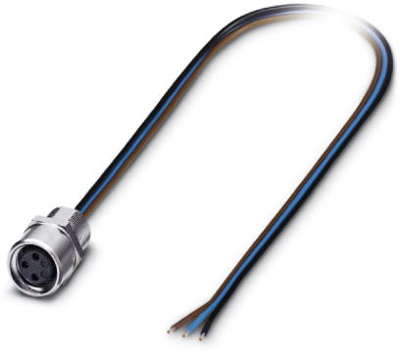

Sensor actuator cable, M8-flange socket, straight to open end, 3 pole, 1 m, 4 A, 1541733
Order No.: 61P8972
EAN: 4046356091374
MPN:
1541733
SACC-E-M 8FS-3CON-M8/1,0
Unit Price (€ / pc.)
24.7639 € *
Available: 0 pcs.
Leadtime: On Request **
Sensor-actuator connector, 1541733, Phoenix Contact
Panel feed-through, 3-position, Socket, straight, M8, Front mounting, M8 x 0.5, Individual wires, cable length: 1 m, 0.25 mm², PVC litz wire.
Features
- Pre-assembled with litz wires for immediate use
- Sealed on the litz wire side for optimum leak-tightness
- A-coded
- Pollution degree: 3
- Overvoltage category: II
- Degree of protection: IP67
Technical specifications
| Connection (1) | M8-flange socket, straight | |
| Connection (2) | open end | |
| Cable length | 1 m | |
| LED display | No | |
| max. Voltage | 60 V | |
| Rated current | 4 A | |
| Pin number | 3 pole | |
| Degree of protection (IP) | IP67 |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
