1425584 | Phoenix Contact
Sensor actuator cable, M12-flange plug, straight to open end, 5 pole, 0.2 m, 16 A, 1425584
Order No.: 61P8723
EAN: 4055626424330
MPN:
1425584
SACC-DSI-M12MSL4FE-M16XL/0,2GR
Unit Price (€ / pc.)
30.3450 € *
Available: 1 pcs.
Leadtime: 27 Weeks **
Total Price:
30.35 € *
Price list
Quantity
Price per unit*
1 pcs.
30.3450 €
5 pcs.
28.5362 €
15 pcs.
27.4414 €
50 pcs.
26.2276 €
150 pcs.
25.1328 €
*incl. VAT plus shipping costs
**Subject to prior sale

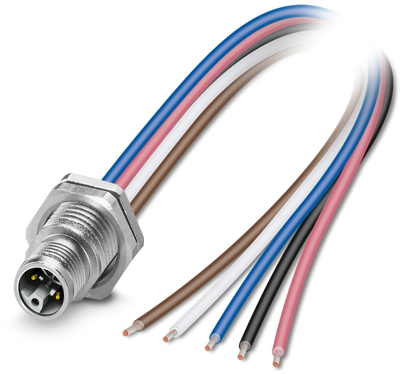

Device connector, 1425584, Phoenix Contact
Device connector, Rear mounting, Power, 5-position, Flush-type male connector, Straight, M12-Standard, coding: L , On free cable end, M16 x 1.5, Individual wires, Cable length: 0.2 m, 2.50 mm², TPE litz wire.
Features
- Pre-assembled with litz wires for immediate use
- Sealed on the litz wire side for optimum leak-tightness
- All standard pin assignments and codings for signal, data, and power transmission with a uniform design-in design
- For high transmission safety: shield connection to the housing with optional EMC nut
- SPEEDCON fast locking system reduces cabling times
Technical specifications
| Connection (1) | M12-flange plug, straight | |
| Connection (2) | open end | |
| Cable length | 0.2 m | |
| LED display | No | |
| max. Voltage | 63 V | |
| Rated current | 16 A | |
| Pin number | 5 pole | |
| Degree of protection (IP) | IP67 |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85444290 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
