1424030 | Phoenix Contact
Sensor actuator cable, M12-flange socket, straight to open end, 8 pole, 2 m, 2 A, 1424030
Order No.: 61P8589
EAN: 4046356666756
MPN:
1424030
SACC-DSI-FS-8CON-PG 9/2,0 SCO
Unit Price (€ / pc.)
19.992 € *
Available: 0 pcs.
Leadtime: On Request **

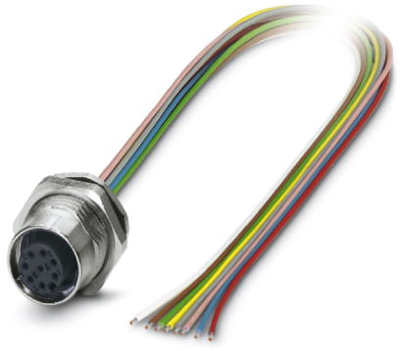

Sensor-actuator connector, 1424030, Phoenix Contact
Sensor/actuator flush-type socket, 8-pole, M12 SPEEDCON, rear/screw mounting with Pg9 thread, with 2.0 m TPE litz wire, 8 x 0.25 mm².
Features
- Pre-assembled with litz wires for immediate use
- Sealed on the litz wire side for optimum leak-tightness
- A-coded
- Fast locking system
- Pollution degree: 3
- Overvoltage category: III
Applications
- For high transmission safety
Technical specifications
| Connection (1) | M12-flange socket, straight | |
| Connection (2) | open end | |
| Cable length | 2 m | |
| LED display | No | |
| max. Voltage | 30 V | |
| Rated current | 2 A | |
| Pin number | 8 pole | |
| Degree of protection (IP) | IP65/IP67 |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85444290 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
