1411588 | Phoenix Contact
Sensor actuator cable, M12-flange socket, straight to open end, 8 pole, 0.5 m, 2 A, 1411588
Order No.: 61P8658
EAN: 4046356935845
MPN:
1411588
SACC-DSI-M12FS-8P-M16XL/0,5
Unit Price (€ / pc.)
29.4287 € *
Available: 1 pcs.
Leadtime: 4 Weeks **
Total Price:
29.43 € *
Price list
Quantity
Price per unit*
1 pcs.
29.4287 €
5 pcs.
27.6675 €
15 pcs.
26.6084 €
50 pcs.
25.4303 €
150 pcs.
24.3712 €
*incl. VAT plus shipping costs
**Subject to prior sale

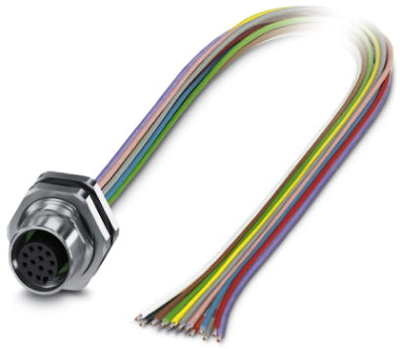

Sensor-actuator connector, 1411588, Phoenix Contact

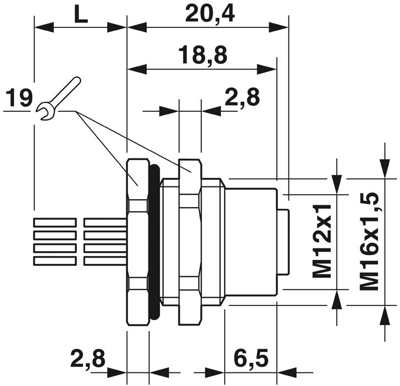

Device connector, rear mounting, Universal, 8-position, Socket, M12, Rear mounting, M16 x 1.5, Individual wires, cable length: 0.5 m, 0.25 mm², TPE litz wire.
Features
- Pre-assembled with litz wires for immediate use
- Mechanical tightening limitation for long-term-stable gasket
- A-coded
- Sealed on the litz wire side for optimum leak-tightness
- Pollution degree: 3
- Overvoltage category: II
Applications
- For signal transmission
- For data transimission
- For power transimission
Technical specifications
| Connection (1) | M12-flange socket, straight | |
| Connection (2) | open end | |
| Cable length | 0.5 m | |
| LED display | No | |
| max. Voltage | 30 V | |
| Rated current | 2 A | |
| Pin number | 8 pole | |
| Degree of protection (IP) | IP65/IP67 |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85444290 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
