3240784 | Phoenix Contact

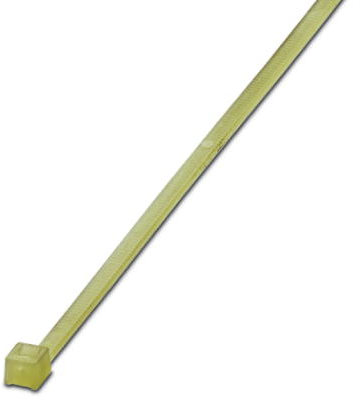

Cable tie, polyamide, (L x W) 200 x 3.6 mm, bundle-Ø 3 to 50 mm, transparent, -40 to 125 °C
Order No.: 61P3343
EAN: 4046356705028
MPN:
3240784
WT-HT HF 3,6X200
Unit Price (€ / pc.)
0.1142 € *
Available: 0 pcs.
Leadtime: 8 Weeks **
Cable tie, 3240784, Phoenix Contact
The 3240784 is a cable tie that is specially designed for high temperature applications. This product has a special head shape for high tensile forces.
Features- Easy to use thanks to its optimized geometries
- Halogen free
- Silicone free
Technical specifications
| Width | 3.6 mm | |
| Colour | transparent | |
| Halogen free | Yes | |
| Length | 200 mm | |
| Material | polyamide | |
| max. Bundle diameter | 50 mm | |
| max. operating temperature | 125 °C | |
| min. Bundle diameter | 3 mm | |
| min. operating temperature | -40 °C | |
| detachable closure | No | |
| Min holding force | 130 N |
Download
Logistics
| Country of origin | HR |
| Customs tariff number | 39269097 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
