3240735 | Phoenix Contact
Cable tie, polyamide, (L x W) 98 x 2.5 mm, bundle-Ø 1 to 21 mm, transparent, -40 to 85 °C
Order No.: 61P3296
EAN: 4046356704519
MPN:
3240735
WT-HF 2,5X98-L
Unit Price (€ / pc.)
0.0357 € *
Available: 0 pcs.
Leadtime: 2 Weeks **

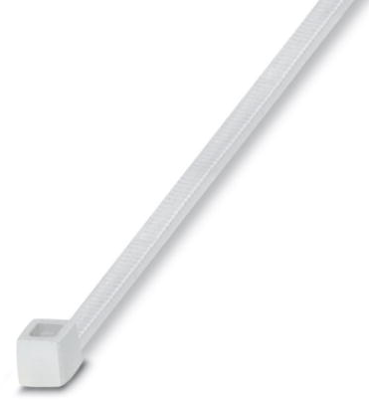

Cable tie, 3240735, Phoenix Contact
The 3240735 is a cable tie suitable for bundling and fastening conductors and cables. This product can be used indoors and outdoors even under unfavorable industrial conditions and it is easy to use thanks to its optimized geometries.
Features- Easily tightened and cut off flush in one step
- Optimum head shape for high tensile forces
- Halogen free
- Silicone free
Technical specifications
| Width | 2.5 mm | |
| Colour | transparent | |
| Halogen free | Yes | |
| Length | 98 mm | |
| Material | polyamide | |
| max. Bundle diameter | 21 mm | |
| max. operating temperature | 85 °C | |
| min. Bundle diameter | 1 mm | |
| min. operating temperature | -40 °C | |
| UV-resistant | No | |
| detachable closure | No | |
| Min holding force | 80 N |
Download
Logistics
| Country of origin | IT |
| Customs tariff number | 39269097 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
