3240720 | Phoenix Contact
Cable tie, polyamide, (L x W) 200 x 4.8 mm, bundle-Ø 3.5 to 44 mm, transparent, -40 to 85 °C
Order No.: 61P3285
EAN: 4046356704366
MPN:
3240720
WT-E HF 4,8X200
Unit Price (€ / pc.)
0.2368 € *
Available: 0 pcs.
Leadtime: 8 Weeks **

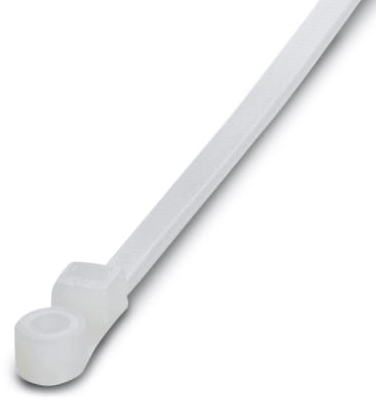

Cable tie, 3240720, Phoenix Contact

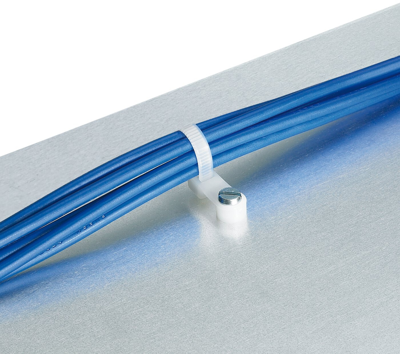

The 3240720 is a cable tie with lug for direct mounting. This product offers a secure hold thanks to screw or rivet fixing.
Features- Easy to use
- Optimum head shape for high tensile forces
- Halogen free
- Silicone free
Technical specifications
| Width | 4.8 mm | |
| Colour | transparent | |
| Halogen free | Yes | |
| Length | 200 mm | |
| Material | polyamide | |
| max. Bundle diameter | 44 mm | |
| max. operating temperature | 85 °C | |
| min. Bundle diameter | 3.5 mm | |
| min. operating temperature | -40 °C | |
| UV-resistant | No | |
| detachable closure | No | |
| Min holding force | 220 N |
Download
Logistics
| Country of origin | TW |
| Customs tariff number | 39269097 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
