87747 | PEPPERL+FUCHS
Proximity switch, built-in mounting M30, 1 Form A (N/O), 15 mA, Detection range 15 mm, 87747
Unit Price (€ / pc.)
166.243 € *
Available: 0 pcs.
Leadtime: 12 Weeks **
Inductive sensors, type Pepperl+Fuchs NBB15.
Sensing range: 15 mm. Output function: NO. Mounting mode: flush. Switching output: PNP. Rated voltage: 10 to 30 VDC. Connection: 4-pole appliance connector. Voltage drop: max. 3.0 VDC. Open circuit current: max. 15 mA. Switching frequency: max. 200 Hz. Housing: nickel-plated brass. Degree of protection: IP 67. Ambient temperatures: –40 to 70 °C. Certifications: UL, CSA.
Type: 087747, inductive sensor
Technical specifications
| Connection | M12-connector | |
| Version | Inductive sensor | |

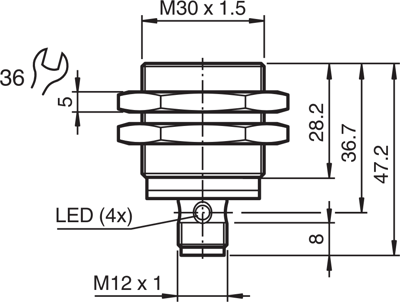

| diameter | 30 mm | |
| Detection range | 15 mm | |
| Length | 47.2 mm | |
| Assembly | built-in mounting M30 | |
| Latching switching function | 1 Form A (N/O) | |
| switching current | 15 mA | |
| Degree of protection (IP) | IP67 |
Download
Logistics
| Country of origin | ID |
| Customs tariff number | 85365019 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | lead, 4,4´-isopropylidenediphenol, hexahydromethylphthalic anhydride |
