87743 | PEPPERL+FUCHS
Proximity switch, built-in mounting M18, 1 Form A (N/O), 15 mA, Detection range 8 mm, 87743

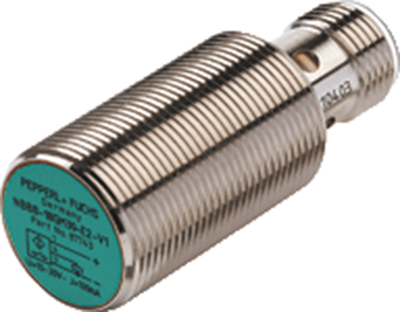

Inductive sensors, type Pepperl+Fuchs NBB8.
Sensing range: 8.0 mm. Output function: NO. Mounting mode: flush. Switching output: PNP. Rated voltage: 10 to 30 VDC. Connection: 4-pole appliance connector. Voltage drop: max. 3.0 VDC. Open circuit current: max. 15 mA. Switching frequency: max. 500 Hz. Housing: nickel-plated brass. Degree of protection: IP 67. Ambient temperatures: –40 to 70 °C. Certifications: UL, CSA.
Type: 087743, inductive sensor
Connection | M12-connector | |
Version | Inductive sensor | |

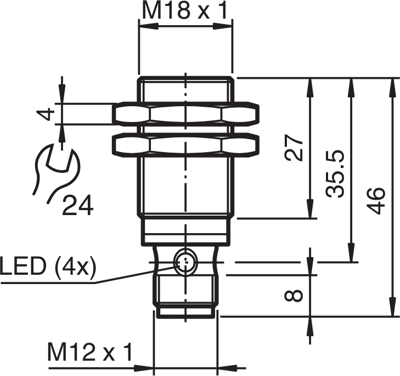

diameter | 18 mm | |
Detection range | 8 mm | |
Length | 46 mm | |
Assembly | built-in mounting M18 | |
Latching switching function | 1 Form A (N/O) | |
switching current | 15 mA | |
Degree of protection (IP) | IP67 |
Country of origin | ID |
Customs tariff number | 85365019 |
RoHS conform | Yes |
Date of RoHS guidelines | 3/31/15 |
SVHC free | No |
Substance description | lead, 4,4´-isopropylidenediphenol, hexahydromethylphthalic anhydride |
