231698 | PEPPERL+FUCHS
Proximity switch, built-in mounting M8, 1 Form A (N/O), 15 mA, Detection range 6 mm, 231698

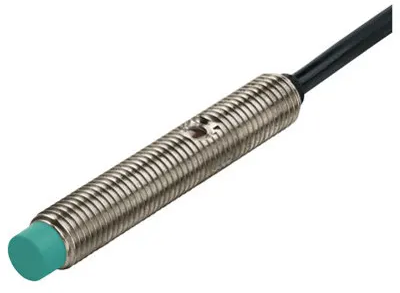

Inductive sensors, type Pepperl+Fuchs NEN6.
Increased sensing range: 6.0 mm. Output function: NO. Mounting mode: not flush. Switching output: PNP. Rated voltage: 10 to 30 VDC. Connection: 2.0 m PUR cable. Voltage drop: max. 2.0 VDC. Open circuit current: max. 15 mA. Switching frequency: max. 750 Hz. Housing: nickel-plated brass. Degree of protection: IP 67. Operating temperatures: –25 to 85 °C. Certifications: UL.
Type: 231698, inductive sensor
Connection | stranded wires | |
Version | Inductive sensor | |

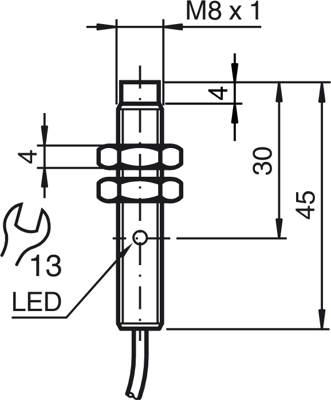

diameter | 8 mm | |
Detection range | 6 mm | |
Length | 45 mm | |
Assembly | built-in mounting M8 | |
Latching switching function | 1 Form A (N/O) | |
switching current | 15 mA | |
Degree of protection (IP) | IP67 |
Country of origin | CZ |
Customs tariff number | 85365019 |
RoHS conform | Yes |
Date of RoHS guidelines | 3/31/15 |
SVHC free | Yes |
