194784 | PEPPERL+FUCHS
Proximity switch, Surface mounting, antivalent, 20 mA, Detection range 20 mm, 194784
Unit Price (€ / pc.)
169.1466 € *
Available: 0 pcs.
Leadtime: 4 Weeks **

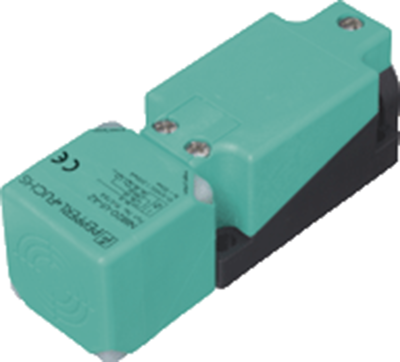

Inductive sensors, type Pepperl+Fuchs NBB20.
Bidirectional and rotatable sensor head, 4 display LEDs for 360° visibility; Operating distance: 20 mm. Output function: antivalent. Mounting mode: flush. Switching output: PNP. Rated voltage: 10 to 30 VDC. Connection: screw terminals. Voltage drop: max. 2.0 VDC. Open circuit current: max. 20 mA. Switching frequency: max. 150 Hz. Housing: PA/metal with epoxy powder coating. Degree of protection: IP 68, IP 69 K. Ambient temperatures: –25 to +85 °C. Certifications: UL, CSA.
Type: 194784, inductive sensor
Technical specifications
| Connection | screw connection | |
| Version | Inductive sensor | |
| Detection range | 20 mm | |
| Assembly | Surface mounting | |
| Latching switching function | antivalent | |
| switching current | 20 mA | |
| Degree of protection (IP) | IP69K |
Download
Logistics
| Country of origin | VN |
| Customs tariff number | 85365019 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
