AH18629-A | Panasonic
Ultraminiature snap-action switche, On-On, PCB connection, hinge lever, 0.49 N, 3 A/125 VAC, 2 A/30 VDC, IP40
Unit Price (€ / pc.)
1.1305 € *
Available: 0 pcs.
Leadtime: On Request **

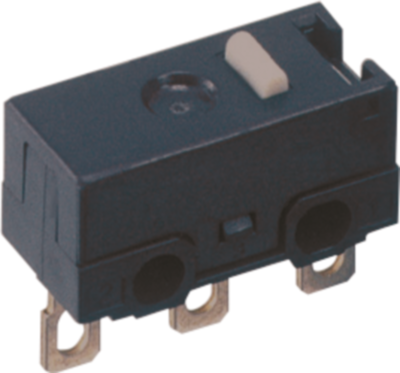

Ultraminiature-Switch, AH18629-A, PANASONIC
Ultraminiature-Switch, IP40, 2.0mm mounting holes, PCB left angle, 1,47 N with stand off, Hinge lever, UL/CSA.
Features
- Compact size, light weight and high precision
- Switches that can be used with M2 general-purpose screws
- Self-standing terminal easily mounted on PC boars
Applications
- Computer mouse
- Charger unit for portable terminal
- Electric pot
Technical specifications
| Connection | PCB connection | |
| Design | angled | |
| Actuator | hinge lever | |
| actuating force | 0.49 N | |
| Latching switching function | On-On | |
| Breaking capacity | 3 A/125 VAC, 2 A/30 VDC | |
| Switching point | 6.8 mm ±1 mm | |
| Protection class | IP40 |
Download
Logistics
| Country of origin | TH |
| Customs tariff number | 85365080 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
