2-1419128-9 | OEG
Relay, 1 Form A (N/O), 5 V (DC), 55.6 Ω, 10 A, 30 V (DC), 277 V (AC), monostable, 2-1419128-9
Unit Price (€ / pc.)
1.1543 € *
Available: 0 pcs.
Available in 5 Days: 1,832 pcs.
Leadtime: 1 Week **
Total Price:
1.15 € *
Price list
Quantity
Price per unit*
75 pcs.
1.1543 €
400 pcs.
1.0948 €
*incl. VAT plus shipping costs
**Subject to prior sale

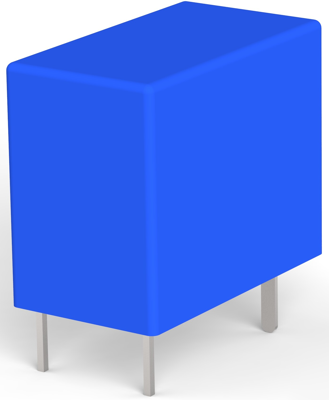

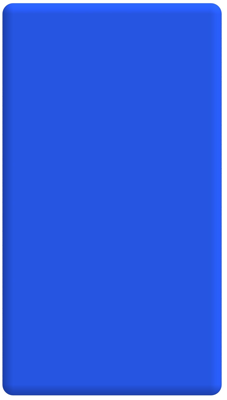

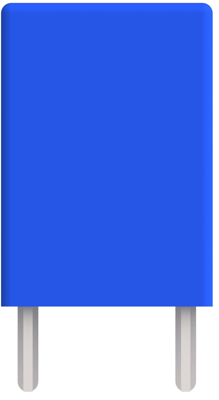

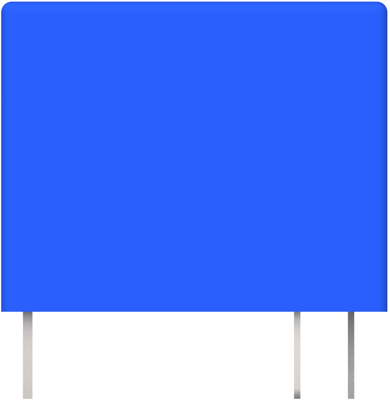

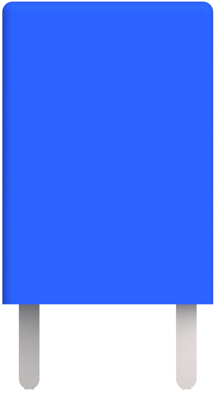

Miniature PCB relay, 2-1419128-9, OEG
Power relay, Standard, Monostable, DC, 450 mW Coil Power Rating DC, 55.6 Ω Coil Resistance.
Features
- Small size with outline dimension
Applications
- Major home appliance
- Small appliances
- HVAC
- Industrial control
Technical specifications
| Connection | PCB pin | |
| Contact type | 1 Form A (N/O) | |
| Contact material | Ag alloy | |
| Switching Voltage (AC) | 277 V | |
| Switching Voltage (DC) | 30 V | |
| switching current | 10 A | |
| Coil voltage (DC) | 5 V | |
| Coil type | monostable | |
| Coil resistance | 55.6 Ω |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85364900 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Cadmium oxide |
