BAS85,115 | NEXPERIA
Small-signal Schottky diode, 30 V, 20 mA, SOD80

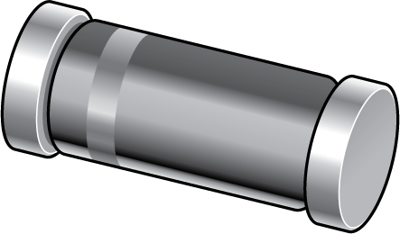

Images may differ
Unit Price (€ / pc.)
0.0893 € *
Available: 20,379 pcs.
Leadtime: 6 Weeks **
Total Price:
8.92 € *
Quantity
Price per unit*
100 pcs.
0.0893 €
300 pcs.
0.0643 €
1000 pcs.
0.0536 €
3000 pcs.
0.0464 €
10000 pcs.
0.0405 €
*incl. VAT plus shipping costs
**Subject to prior sale
Description
Small-signal Schottky diodes.
Technical attributes (type, voltage, current, package manufacturer): BAS85, 30 V, 200 mA, SOD80
Technical specifications
| Number of diodes | 1 | |
| Version | schottky rectifier diode | |
| Design | SMD | |
| Forward Current | 0.2 A | |
| Enclosure | SOD-80 | |
| Capacity | 10 pF | |
| max. operating temperature | 125 °C | |
| min. operating temperature | -65 °C | |
| Voltage V RRM (peak reverse voltage) | 30 V | |
| Junction temperature (max.) | 125 °C |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85411000 |
| Original Packaging | Reel with 2,500 pieces |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
