006-1-032-D-G3STF-XS0 | MPE-GARRY

IC contact spring strip, 32 pole, pitch 2.54 mm , brass/copper beryllium for DIL-IC, 006-1-032-D-G3STF-XS0

Order No.: 15B5840
EAN: 4099879023674
MPN:
006-1-032-D-G3STF-XS0
Series: MS xx x
MPE-GARRY

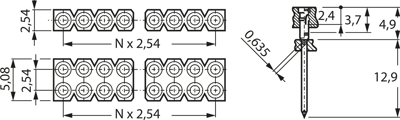

006-1-032-D-G3STF-XS0 MPE-GARRY Semiconductor Sockets, Holders Image 1

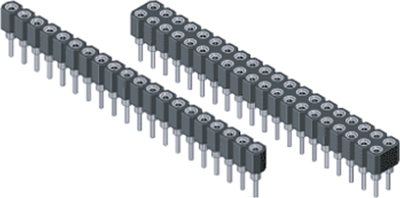

006-1-032-D-G3STF-XS0 MPE-GARRY Semiconductor Sockets, Holders Image 2
Image may differ
Unit Price (€ / pc.)
14.399 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
14.40 € *
*incl. VAT plus shipping costs
**Subject to prior sale
750 pcs.
14.399 €

IC spring socket strips with wire-wrap posts, type MPE-GARRY MS/MSD.

Insulating body: thermoplastic to UL 94 V-0. Contact material: brass/beryllium copper, gold-plated spring. Rated current: 1.0 A. Rated voltage: 100 VRMS/150 VDC. Operating temperatures: –55 to +125 °C.

Technical attributes (number of poles, finish of wire-wrap posts): 006-1-032-D-G3STF-XS0, 32-pole, tinned

Technical specifications
Version IC contact spring strip
Width 2.54 mm
Suitable for DIL-IC
Height 2.4 mm
Contact material brass/copper beryllium
Length 10.6 mm
Material thermoplastic
max. operating temperature 125 °C
min. operating temperature -55 °C
Rated voltage 150 V
Rated current 3 A
Pin number 32 pole
Grid 2.54 mm
Logistics
Country of origin DE
Customs tariff number 85366990
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
