D 20/4W 10% 470R | KRAH

Ceramic wire potentiometer, 470 Ω, 4 W, linear, solder lug, D 20/4W 10% 470R

Order No.: 74E266
EAN: 4099879973252
MPN:
D 20/4W 10% 470R
Series: D20

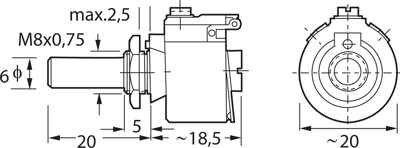

D 20/4W 10% 470R KRAH Potentiometers Image 1

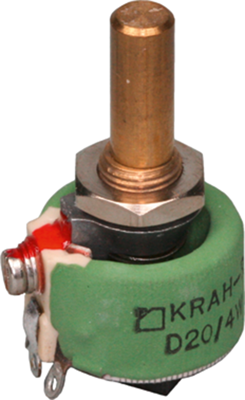

D 20/4W 10% 470R KRAH Potentiometers Image 2
Image may differ
Unit Price (€ / pc.)
184.4143 € *
Available: 0 pcs.
Leadtime: 10 Weeks **
Total Price:
922.07 € *
Price list
Quantity
Price per unit*
5 pcs.
184.4143 €
50 pcs.
113.3594 €
*incl. VAT plus shipping costs
**Subject to prior sale

Ceramic wire-wound potentiometers, type KRAH-RWI D 20/4.

Rated power: 4.0 W. Max. load rating: 5.0 W/40 °C, compliant with DIN 41474. Tolerance: ±10 %, with 6.0 mm shaft. Shaft length: 15 mm. Test voltage: 1000 VAC. Mechanical/electrical range of adjustment: 270/250°.

Type: 470R

Technical specifications
Track Taper linear
Assembly angled
Width 18.5 mm
Mechanic rotary range 270 °
Power 4 W
Length 20 mm
axle diameter 6 mm
Version ceramic wire potentiometer
Connection solder lug
Rotary range, electrical 250 °
ohmic resistance 470 Ω
Logistics
Country of origin IT
Customs tariff number 85333100
Original Packaging Bulk with 6 pieces
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
