Knipex

46 10 100 | Knipex

Circlip Tool for internal and external circlips up to 1000 mm nominal size

default S
default L
Total price
(1,188.81 € * / pcs.)
0.00 €
Currently not in stock, we will order for you
Quantity
Price per piece*
1 pcs.
1,188.81 €
*incl. VAT plus shipping costs
Description

Product by Knipex at Bürklin Elektronik

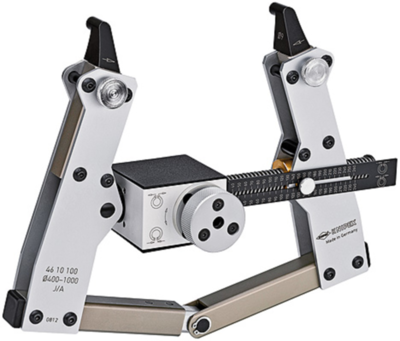

Circlip Pliers, Knipex
Universally usable for large circlips with diameters of 400 - 1000 mm. Reliable opening and closing of the circlips and holding by self-locking precision spindle drive. For fitting and removing circlips. Circlips are reliably catched thanks to short, direct attachment. Replaceable tips having working ends with diameters of 6 and 9 mm, for perfect adaption to the handling bores in the circlips. Optional operation by hand, with Allen key, ratchet wrench or cordless screwdriver. Areas of application are heavy engines where very high forces and torques are transmitted with large shafts and bearings , e.g. wind turbines, tidal power stations, generator construction, hydropower stations, large machine construction (rolling mills, presses), shipbuilding, aerospace. Tool in a plastic case with foam insert. Tip material: chrome-vanadium electric steel
Technical specifications
Version for inner and outer rings (bores and shafts)
Weight 2.2 kg
Length 175 mm
Logistics
Customs tariff number 82032000
Compliance
Guidline date 3/31/15
RoHS confom not_relevant
Substance CAS number 7439-92-1
Substance code 1221
Substance EC number 231-100-4
Substance description Lead
SVHC date 1/17/22
SVHC free No
Download
Technical Data Sheet - EN
Technical Data Sheet
Technical Data Sheet - DE
Technical Data Sheet
