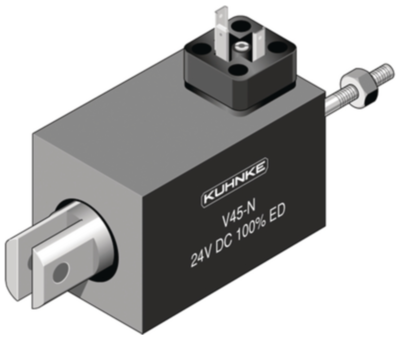

V45-N-24VDC 100% ED | Kendrion Kuhnke
Solenoid V45
Active
Total price
(
246.9131 €
* / pcs.)
246.91 €
Available: 7 pcs.
Next delivery: 8 pcs. on 2023-06-27
Quantity
Price per unit*
1 pcs.
246.9131 €
2 pcs.
239.4994 €
5 pcs.
225.1361 €
*incl. VAT plus
shipping costs
Please send price/quantity requests to info@buerklin.com
Description
Product by Kendrion Kuhnke at Bürklin Elektronik
Linear Solenoid, V45-N-24VDC 100% ED,49425, Kuhnke
Thrust or pull type with magnet: 970 g and insulation coordination according to DIN EN 606644-1: 4 kV/2. Long life expectancy due to armature bearing in plastic bobbin and additional plain bearing.
Technical Data
- Connection: Socket connection 6.3 mm
- Design: thrust or pull
- Voltage: 24 V
- Power: 18 W
Technical specifications
| Initial force | 12 N | |
| Connection | plug sleeve connection 6.3 mm | |
| Version | thrust and pull | |
| On Period | 100 % ED | |
| Final force | 35 N | |
| Stroke | 10 mm | |
| Power | 18 W | |
| Rated voltage (DC) | 24 V | |
| Return spring | No |
Logistics
| Country of origin | DE |
| Customs tariff number | 85059029 |
Compliance
| RoHS conform | Yes |
| SVHC free | Yes |
