E-RF3068 | Frolyt

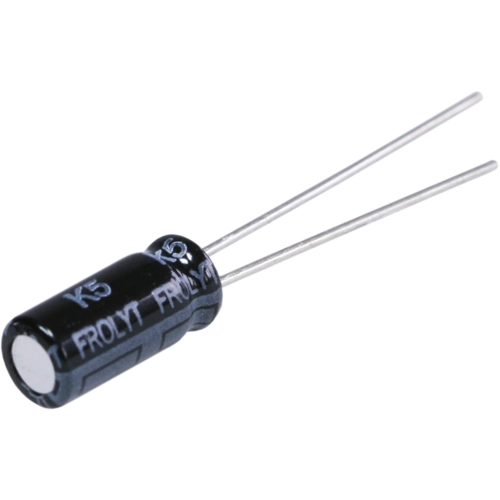

Electrolytic capacitor, 10 µF, 25 V (DC), ±20 %, radial, pitch 2.5 mm, Ø 5.5 mm, E-RF3068
Unit Price (€ / pc.)
0.8211 € *
Available: 0 pcs.
Next delivery: 195 pcs. on 2025-06-23
Leadtime: On Request **
Total Price:
0.82 € *
Price list
Quantity
Price per unit*
1 pcs.
0.8211 €
10 pcs.
0.5117 €
50 pcs.
0.4165 €
250 pcs.
0.3451 €
1000 pcs.
0.3011 €
*incl. VAT plus shipping costs
**Subject to prior sale
Electrolytic capacitor, insulated aluminum can, type Frolyt ERF.
Resistant against switching transients, low impedance (Z), radial wire ends for vertical mounting on PCBs, to DIN IEC 60384-1
Rated voltage 25 VDC.
Technical specifications
| Rated voltage (DC) | 25 V | |
| Capacity | 10 µF | |
| diameter | 5.5 mm | |
| Grid | 2.5 mm | |
| Length | 12 mm | |
| Version | polar | |
| Design | radial | |
| min. operating temperature | -55 °C | |
| Tolerance | ±20 % | |
| max. operating temperature | 105 °C |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85322200 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
