8550 TV | ebm-papst

Name: AC axial fan, 230 V, 76 x 37 x 76 mm, 40 m³/h, 27 dB, Slide bearing, ebm-papst, 8550 TV
Brand: ebm-papst
SKU: 90B102
Price: 60.95 EUR
Availability: InStock

AC axial fan, 230 V, 76 x 37 x 76 mm, 40 m³/h, 27 dB, Slide bearing, ebm-papst, 8550 TV

Order No.: 90B102

MPN:

8550 TV

9244014665

Series: 8000 TV

EAN: 4099889480290

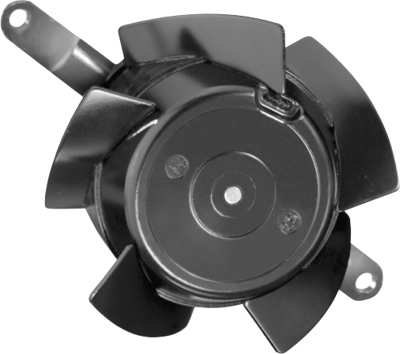

Images may differ

Key Specification:

Version AC axial fan

Rated voltage 230 V

Width 76 mm

Height 37 mm

Depth 76 mm

Technical specifications Download Datasheet

Discontinued

Unit Price (€ / pc.)

60.9518 € *

Available: 39 pcs.

Leadtime: On Request **

Total Price:

60.95 € *

Quantity

Price per unit*

1 pcs.

60.9518 €

5 pcs.

57.2866 €

10 pcs.

53.8594 €

25 pcs.

49.0161 €

*incl. VAT plus shipping costs

**Subject to prior sale

Add to comparison list Print

Description

AC Axial fan, 8550 TV, EBM-PAPST

The 8550 TV axial AC fan is a type of fan that blow air along the axis of the fan-that is, the fancurved blades force air to move in parallel with the shaft on which the blades rotate. This fan can produce variable airflow and create higher flow rates than centrifugal fan.

Features

Connection cable via 2 single strands AWG 18
Protected against overload by impedance protection
Direction of rotation right, viewed on the rotor
Material housing: metal

Technical specifications

Show similar products (0)

Download

Declaration of Conformity - EN

Declaration of Conformity

Technical Data Sheet - DE

Technical Data Sheet

Declaration of Conformity - DE

Declaration of Conformity

Logistics

Country of origin	HU
Customs tariff number	84145925

Compliance

RoHS conform	Yes
Date of RoHS guidelines	3/31/15
SVHC free	No
Substance description	Lead

On our category pages and product pages you will find the following green symbols:

Available via download:

Schematic symbols
PCB footprints
3D models

Schematic symbols and PCB footprints are available

Available via download:

Schematic symbols
PCB footprints

No models are currently available

Circuit diagram symbols and PCB footprint can be requested by clicking on the icon for the respective product.

Country	Runtime days	Freight excl. VAT	Freight incl. VAT
Germany	1	6,90 €	8,21 €
Austria	1-2	8,30 €	9,88 €
Switzerland	1-2	16,40 €	19,52 €

	Version	AC axial fan
	Width	76 mm
	speed	2650 1/s
	Height	37 mm
	Type of bearing	Slide bearing
	Power consumption	12 W
	Rated voltage	230 V
	Sound pressure level	27 db
	Depth	76 mm
	Volume flow	40 m³/h
