614 NGHH | ebm-papst

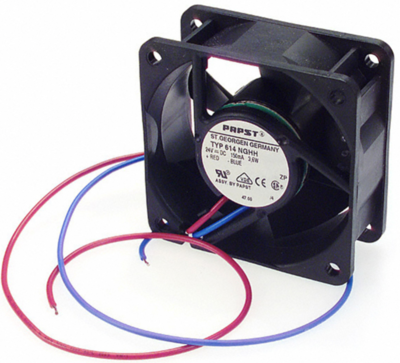

DC axial fan, 24 V, 60 x 60 x 25 mm, 56 m³/h, 43 dB, slide bearing, ebm-papst, 614 NGHH
Unit Price (€ / pc.)
19.4803 € *
Available: 1,048 pcs.
Leadtime: 10 Weeks **
Total Price:
19.48 € *
Price list
Quantity
Price per unit*
1 pcs.
19.4803 €
10 pcs.
17.9214 €
*incl. VAT plus shipping costs
**Subject to prior sale
DC Axial fan, 614 NGHH, EBM-PAPST
The 614 NGHH is a brushless DC axial fan that is made for applications that require high performance cooling and protection from harsh weather conditions in outdoor and extreme environments.
Features
- Electrical connection to 3 single strands AWG 24, TR 64, strand ends stripped and tinned
- With electronic reverse pole, blocking and overload protection
- Speed sensor with 2 square pulses per revolution
- Direction of rotation right, viewed on the rotor, blowing over bars
Technical specifications
| Version | DC axial fan | |
| Width | 60 mm | |
| speed | 6850 1/s | |
| Height | 60 mm | |
| Type of bearing | slide bearing | |
| Power consumption | 3.6 W | |
| Rated voltage | 24 V | |
| Sound pressure level | 43 db | |
| Depth | 25 mm | |
| Volume flow | 56 m³/h |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 84145925 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
