4188 NXM | ebm-papst

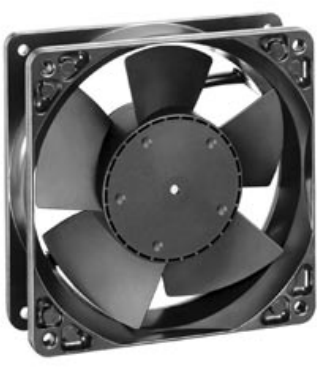

DC axial fan, 48 V, 119 x 119 x 38 mm, 160 m³/h, 44 dB, ball bearing, ebm-papst 4188 NXM
Unit Price (€ / pc.)
85.7990 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
85.80 € *
Price list
Quantity
Price per unit*
1 pcs.
85.7990 €
2 pcs.
85.2040 €
5 pcs.
79.4920 €
10 pcs.
72.8280 €
*incl. VAT plus shipping costs
**Subject to prior sale
DC Axial fan, 4188 NXM, EBM-PAPST
The 4188 NXM axial fan is used in all industries where cooling of components or machinery is essential. Fan works by drawing air over a surface to cool it, or by pushing hot air away to cool it.
Features
- Very pressure stiff characteristic for high volume flow at high back pressure
- Low operating noise at high back pressure
- Electronic commutation completely integrated
- Protected against polarity reversal and blocking
Technical specifications
| Version | DC axial fan | |
| Rated voltage | 48 V | |
| Width | 119 mm | |
| Height | 119 mm | |
| Depth | 38 mm | |
| Volume flow | 160 m³/h | |
| Sound pressure level | 44 db | |
| speed | 2800 1/min | |
| Type of bearing | ball bearing | |
| Power consumption | 3.5 W |
Download
Logistics
| Country of origin | HU |
| Customs tariff number | 84145925 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
