MMBTA56 | Diotec

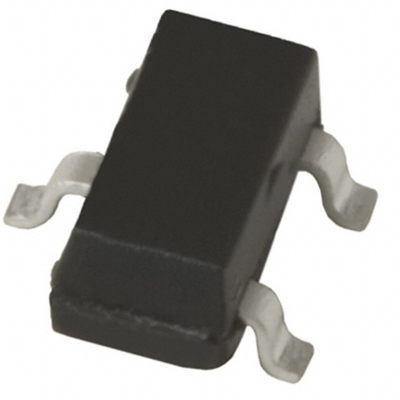

Bipolar junction transistor, PNP, -500 mA, -60 V, SMD, SOT-23, MMBTA56
Unit Price (€ / pc.)
0.0666 € *
Available: 0 pcs.
Leadtime: 5 Weeks **
PNP transistor, MMBTA56, DIOTEC
SMD general purpose PNP transistor.
Features
- Compliant to RoHS, REACH, Conflict Minerals
Applications
- Signal processing
- Switching
- Amplification
- Commercial/industrial grade
Technical specifications
| Version | PNP | |
| Frequency | 100 MHz | |
| Enclosure | SOT-23 | |
| max. operating temperature | 150 °C | |
| max.voltage between collector and base Vcbo | -60 V | |
| max.voltage between collector and emitter Vceo | -60 V | |
| min. operating temperature | -55 °C | |
| Assembly | SMD | |
| Saturation voltage | -250 mV | |
| Transit frequency fTmin | 50 MHz | |
| Power dissipation | 0.25 W | |
| Collector current | -500 mA | |
| Min DC gain | 100 mA |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85412900 |
| Original Packaging | Reel with 3,000 pieces |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
