2N5401 | Diotec

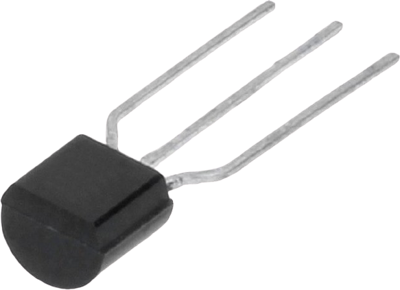

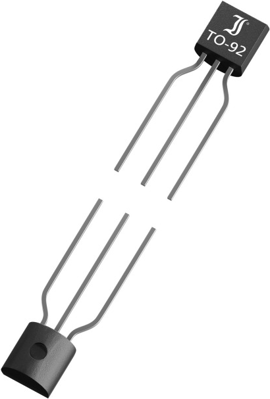

Bipolar junction transistor, PNP, -600 mA, -150 V, THT, TO-92, 2N5401
Images may differ
Unit Price (€ / pc.)
1.9397 € *
Available: 142 pcs.
Leadtime: 5 Weeks **
Total Price:
19.40 € *
Quantity
Price per unit*
10 pcs.
1.9397 €
50 pcs.
1.2971 €
250 pcs.
1.1900 €
1000 pcs.
0.9996 €
2500 pcs.
0.8687 €
*incl. VAT plus shipping costs
**Subject to prior sale
Description
Transistors series 2N.
Technical attributes (type, package, manufacturer): 2N5401, TO92
Technical specifications
| Version | PNP | |
| Enclosure | TO-92 | |
| max. operating temperature | 150 °C | |
| max.voltage between collector and base Vcbo | -160 V | |
| max.voltage between collector and emitter Vceo | -150 V | |
| min. operating temperature | -55 °C | |
| Assembly | THT | |
| Rated current | 600 mA | |
| Transit frequency fTmin | 400 MHz | |
| Power dissipation | 0.625 W | |
| Collector current | -600 mA |
Download
Logistics
| Country of origin | IN |
| Customs tariff number | 85412900 |
| Original Packaging | Bulk with 4,000 pieces |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
